Record screens

With FFmpeg, you can record your screens and save the recordings as animated images or videos.

To record screens:

1. Select Tools > Record Screen.



2. Select to select the screen to record from and to set the recorded screen area.
3. Select to start recording.
4. Select when you are done recording.
5. Select Crop and Trim to edit the recording.
6. Select Export to save the recording as an animated image or a video.

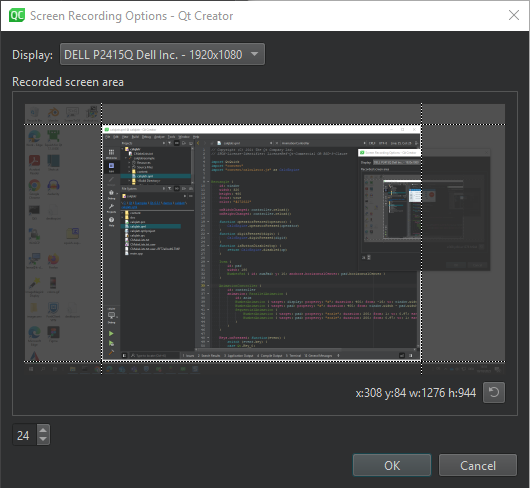

Set the screen and area to record

Set the screen and the area to record in the Screen Recording Options dialog.

To select a screen and area:

1. In Display, select the display to record.
2. In Recorded screen area, drag the guides to set the x and y coordinates of the starting point for the recording area, as well as the width and height of the area.
3. Select OK to return to the Record Screen dialog.

Select to reset the area.

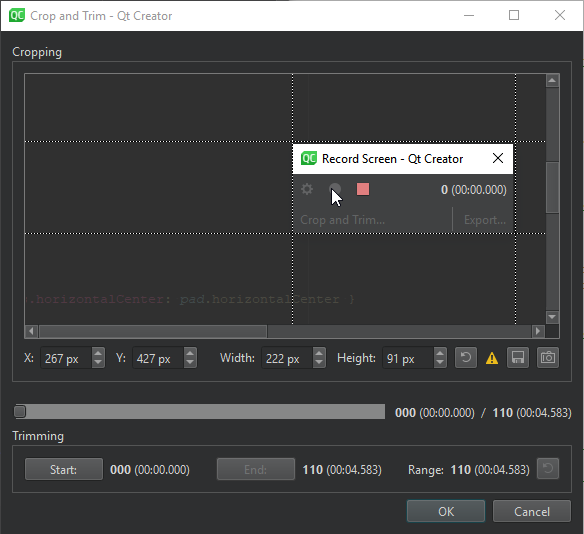

Edit recordings

You can crop and trim the recording in the Crop and Trim dialog.

To crop a recording, in Cropping, drag the guides to set the x and y coordinates of the starting point of the recorded area, as well as the width and height of the area.

To save a cropped version of the current frame as a file, select .

To copy a cropped version of the current frame to the clipboard, select .

To trim a recording:

1. Select the slider to show a handle and drag it to the frame where you want the recording to start.
2. Select Start to set the first frame.
3. Select the slider again and drag the handle to the frame where you want the recording to end.
4. Select End to set the last frame.

Select to reset the crop area and trim range.
