Qt Quick 3D - User Passes Example
Demonstrates creating custom render passes in Qt Quick 3D.
}

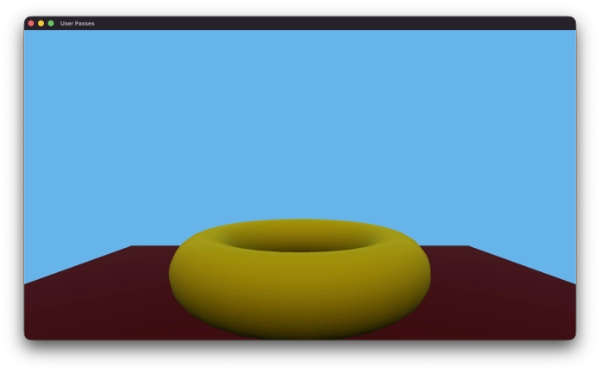

The User Passes example demonstrates how to create custom render passes in Qt Quick 3D. It implements a deferred lighting rendering pipeline using multiple user-defined render passes and shows how to handle the complete rendering sequence: opaque geometry, skybox, 2D items embedded in the scene, and transparent geometry.
Disabling internal render passes
By default, Qt Quick 3D uses a set of internal render passes to render the 3D scene. Sometimes you may want to disable these internal passes and implement your own rendering pipeline using user-defined render passes.
To disable the internal render passes, set the renderOverrides property of the View3D to View3D.DisableInternalPasses.
View3D { id: view3D anchors.fill: parent renderOverrides: View3D.DisableInternalPasses environment: ExtendedSceneEnvironment { lightProbe: Texture { textureData: ProceduralSkyTextureData { } } backgroundMode: SceneEnvironment.SkyBox }
If you disable the internal render passes, you will need to provide the result of the main color pass for the View3D to be able to display anything on the screen.
Geometry Buffer Pass
In this example, the first custom render pass is a geometry buffer (G-buffer) pass that renders the scene geometry into multiple render targets, storing different material properties in each target. The provided example is a subset of the full material properties provided by Qt Quick 3D materials, focusing on the properties needed for a basic deferred lighting implementation.
Our RenderPass is defined in GBufferPass.qml:
RenderPass { id: gbufferPass clearColor: Qt.rgba(0.0, 0.0, 0.0, 0.0) property alias layerMask: filter.layerMask required property RenderPassTexture depthTexture RenderPassTexture { id: gbuffer0 format: RenderPassTexture.RGBA16F // rgb: baseColor (linear), a: metalness } RenderPassTexture { id: gbuffer1 format: RenderPassTexture.RGBA16F // rgb: normal, a: roughness } RenderPassTexture { id: gbuffer2 format: RenderPassTexture.RGBA16F // rgb: emissive, a: ao/spare } commands: [ ColorAttachment { target: gbuffer0; name: "GBUFFER0" }, ColorAttachment { target: gbuffer1; name: "GBUFFER1" }, ColorAttachment { target: gbuffer2; name: "GBUFFER2" }, DepthTextureAttachment { target: gbufferPass.depthTexture }, RenderablesFilter { id: filter renderableTypes: RenderablesFilter.Opaque } ] materialMode: RenderPass.AugmentMaterial augmentShader: "gbuffer_augment.glsl" }
It defines 3 color attachments and 1 depth attachment. The pass requires 3 textures which are defined as RenderPassTexture objects inside the RenderPass. These 3 RenderPassTextures are used as the targets for the color attachments of the pass, and the depth attachment uses a depth texture provided from outside the pass.
The RenderPass itself is set to AugmentMaterial mode, which means that it will augment the materials of the rendered objects with additional shader code. The augment shader is provided in the gbuffer_augment.glsl file, which outputs the required material properties to the multiple render targets.
void MAIN_FRAGMENT_AUGMENT()
{
vec3 baseColor = BASE_COLOR.rgb;
float metalness = METALNESS;
float roughness = ROUGHNESS;
vec3 worldNormal = normalize(WORLD_NORMAL);
// GBuffer 0: albedo + metalness
GBUFFER0 = vec4(baseColor, metalness);
// GBuffer 1: normal (encoded to 0..1) + roughness
GBUFFER1 = vec4(worldNormal * 0.5 + 0.5, roughness);
// GBuffer 2: world position
GBUFFER2 = vec4(qt_varWorldPos, 1.0);
}Here you see how the base color, metalness, worldNormal, roughness and world position are stored into the 3 color attachments of the G-buffer.
To actually use the G-buffer pass in the rendering pipeline, we need to create an instance of it in Main.qml, and provide the required depth texture:
RenderPassTexture { id: mainDepthStencilTexture format: RenderPassTexture.Depth24Stencil8 } GBufferPass { id: gbufferPass layerMask: ContentLayer.Layer0 | ContentLayer.Layer1 depthTexture: mainDepthStencilTexture } RenderOutputProvider { id: gbuffer0Provider textureSource: RenderOutputProvider.UserPassTexture renderPass: gbufferPass attachmentSelector: RenderOutputProvider.Attachment0 } RenderOutputProvider { id: gbuffer1Provider textureSource: RenderOutputProvider.UserPassTexture renderPass: gbufferPass attachmentSelector: RenderOutputProvider.Attachment1 } RenderOutputProvider { id: gbuffer2Provider textureSource: RenderOutputProvider.UserPassTexture renderPass: gbufferPass attachmentSelector: RenderOutputProvider.Attachment2 }
Three RenderOutputProvider instances are created to provide references to the rendered G-buffer textures, which will be used in the subsequent lighting pass.
The layerMask property of the G-buffer pass is set to only render objects that are on ContentLayer.Layer0 and ContentLayer.Layer1. This allows us to control which objects are rendered in the G-buffer pass by setting their layers property accordingly.
Main Color Pass and SubRenderPasses
Rather than a single flat render pass, this example uses a composite mainColorPass that owns the main color and depth textures and orchestrates all rendering through a sequence of SubRenderPass children.
Each SubRenderPass shares the same render targets as the outer pass and executes in order. This makes it straightforward to build a layered rendering pipeline where each stage adds to the result of the previous one.
RenderPass { id: mainColorPass clearColor: "black" // Preserve depth across SubRenderPasses so geometry depth is available // when rendering the skybox, transparent objects, and 2D items. renderTargetFlags: RenderPass.RenderTargetFlags.PreserveDepthStencilContents commands: [ ColorAttachment { target: mainColorTexture }, DepthTextureAttachment { target: mainDepthStencilTexture }, RenderablesFilter { // Nothing renders directly in the outer pass; all rendering // is delegated to the SubRenderPasses below. renderableTypes: RenderablesFilter.None }, // 1. Deferred lighting: shade opaque geometry stored in the G-buffer. SubRenderPass { renderPass: RenderPass { id: deferredLightingPass materialMode: RenderPass.OriginalMaterial commands: [ PipelineStateOverride { // The full-screen quad must not write or test depth; // geometry depth was already written by the G-buffer pass. depthWriteEnabled: false depthTestEnabled: false }, RenderablesFilter { layerMask: ContentLayer.Layer13 } ] } }, // 2. Skybox: render the environment behind all scene geometry. SubRenderPass { renderPass: RenderPass { id: skyboxPass passMode: RenderPass.SkyboxPass commands: [ PipelineStateOverride { // The skybox is rendered "at infinity" so it must // depth-test (to be hidden by geometry) but must not // write depth. depthTestEnabled: true depthWriteEnabled: false } ] } }, // 3. 2D items: render any Qt Quick Items embedded in the 3D scene. SubRenderPass { renderPass: RenderPass { id: item2DPass passMode: RenderPass.Item2DPass } }, // 4. Transparent objects: render blended geometry on top of everything else. SubRenderPass { renderPass: RenderPass { id: transparentItemPass materialMode: RenderPass.OriginalMaterial commands: [ RenderablesFilter { renderableTypes: RenderablesFilter.Transparent layerMask: ContentLayer.Layer0 | ContentLayer.Layer1 }, PipelineStateOverride { // Enable alpha blending and depth testing so transparent // objects sort correctly against opaque geometry. blendEnabled: true depthTestEnabled: true targetBlend0.enable: true targetBlend0.srcColor: RenderTargetBlend.SrcAlpha targetBlend0.dstColor: RenderTargetBlend.OneMinusSrcAlpha targetBlend0.srcAlpha: RenderTargetBlend.One targetBlend0.dstAlpha: RenderTargetBlend.OneMinusSrcAlpha } ] } } ] }
The outer pass sets renderableTypes: RenderablesFilter.None so that nothing renders directly in the parent pass — all rendering is delegated to the sub-passes. The PreserveDepthStencilContents flag ensures that depth values written by the G-buffer pass are available to every sub-pass.
Deferred Lighting SubPass
The first sub-pass runs the deferred lighting computation. It renders the full-screen deferredLightingQuad model which samples the G-buffer textures and evaluates lighting for every pixel.
Model { id: deferredLightingQuad layers: ContentLayer.Layer13 castsShadows: false receivesShadows: false geometry: PlaneGeometry { // geometry doesn't matter, just need 4 verts plane: PlaneGeometry.XY } materials: [ CustomMaterial { id: lightingPassMaterial property TextureInput gbuffer0: TextureInput { enabled: true texture: Texture { textureProvider: gbuffer0Provider } } property TextureInput gbuffer1: TextureInput { enabled: true texture: Texture { textureProvider: gbuffer1Provider } } property TextureInput gbuffer2: TextureInput { enabled: true texture: Texture { textureProvider: gbuffer2Provider } } shadingMode: CustomMaterial.Unshaded fragmentShader: "lighting.frag" vertexShader: "lighting.vert" } ] }
The deferredLightingQuad is placed on ContentLayer.Layer13 so that it is invisible to the G-buffer pass and only rendered by this sub-pass.
A PipelineStateOverride disables both depth writes and depth tests for the quad. The G-buffer pass already wrote correct depth for the scene geometry, so the full-screen quad must not alter or test depth.
Skybox SubPass
The second sub-pass renders the scene environment skybox using the special RenderPass.SkyboxPass pass mode. Qt Quick 3D takes care of drawing the skybox geometry using the lightProbe and backgroundMode settings from the SceneEnvironment.
A PipelineStateOverride enables depth testing so the skybox is correctly hidden behind scene geometry, while depth writes are disabled because the skybox sits "at infinity" and must never occlude geometry.
Transparent Objects SubPass
Transparent objects cannot be stored in the G-buffer because they require back-to-front sorted blending. Instead they are rendered last using their original materials via a dedicated sub-pass.
The transparent cone in the scene is declared as follows:
Model { id: cone layers: ContentLayer.Layer1 source: "#Cone" y: 100 materials: [ PrincipledMaterial { baseColor: Qt.rgba(0.0, 1.0, 0.0, 0.5) alphaMode: PrincipledMaterial.Blend metalness: 0.0 roughness: 0.5 } ] }
The transparent sub-pass uses a RenderablesFilter to select only transparent renderables on the matching layers, and a PipelineStateOverride enables alpha blending while keeping depth testing active so transparent objects sort correctly against opaque geometry.
Transparent objects must be rendered after all opaque passes so that the depth buffer is fully populated before blending occurs.
2D Items in 3D SubPass
Qt Quick 3D can embed standard Qt Quick 2D items inside the 3D scene using Node as a container. To include these items in a custom render pipeline, add a sub-pass with passMode: RenderPass.Item2DPass.
Node { x: -200 y: 100 Item { anchors.centerIn: parent ColumnLayout { Button { text: "Click Me!" } Rectangle { color: "blue" implicitWidth: 50 implicitHeight: 50 NumberAnimation on rotation { from: 0 to: 360 duration: 4000 loops: Animation.Infinite running: true } } } } NumberAnimation on eulerRotation.y { from: 0 to: 360 duration: 6000 loops: Animation.Infinite running: true } }
The Item2DPass mode instructs Qt Quick 3D to render all Qt Quick items that are children of 3D nodes into the current render target, composited with the 3D content already present.
Rendering to the screen
Finally, to display the result of our custom render passes on the screen, we need to ensure that the View3D's main color texture is updated with the result of the main color pass.
SimpleQuadRenderer { texture: Texture { textureProvider: mainColorPassProvider } } RenderPassTexture { id: mainColorTexture format: RenderPassTexture.RGBA16F } RenderOutputProvider { id: mainColorPassProvider textureSource: RenderOutputProvider.UserPassTexture renderPass: mainColorPass attachmentSelector: RenderOutputProvider.Attachment0 }
The SimpleQuadRenderer is used to blit the main color texture produced by the mainColorPass to the View3D's framebuffer. The RenderOutputProvider exposes the first color attachment of mainColorPass as a texture the SimpleQuadRenderer can sample.
