VirtualKeyboardSettings QML Type

Provides settings for virtual keyboard. More...

Import Statement: import QtQuick.VirtualKeyboard.Settings
Since: QtQuick.VirtualKeyboard 1.2

Properties

Signals

Detailed Description

This type provides a VirtualKeyboardSettings singleton instance, which can be used to configure the virtual keyboard settings.

Please note that the settings have only effect in the current application's lifetime, that is, configuration changes are not permanent.

For example, to change the keyboard style in application:

Component.onCompleted: VirtualKeyboardSettings.styleName = "retro"

Property Documentation

activeLocales : list<string> [since QtQuick.VirtualKeyboard.Settings 2.0]

This property contains a list of activated languages of the virtual keyboard.

The list of active languages is a subset of the available languages, and can be used to limit the list of available languages in the application lifetime.

The list of languages will be shown based on the specified ordering.

This property was introduced in QtQuick.VirtualKeyboard.Settings 2.0.


availableLocales : list<string> [read-only, since QtQuick.VirtualKeyboard.Settings 2.0]

This property contains a list of languages supported by the virtual keyboard.

This list is read-only and depends on the build-time configuration of the virtual keyboard.

This property was introduced in QtQuick.VirtualKeyboard.Settings 2.0.


closeOnReturn : bool [since QtQuick.VirtualKeyboard.Settings 6.8]

This property enables hiding of virtual keyboard.

When this property is set to true, the virtual keyboard is hidden when Qt::Key_Enter or Qt::Key_Return key released. The default is false.

This property was introduced in QtQuick.VirtualKeyboard.Settings 6.8.


defaultDictionaryDisabled : bool [since QtQuick.VirtualKeyboard.Settings 6.1]

This property disables the default dictionary. The purpose of this setting is to be able to use a custom dictionary only instead of the standard dictionary.

This property was introduced in QtQuick.VirtualKeyboard.Settings 6.1.


defaultInputMethodDisabled : bool [since QtQuick.VirtualKeyboard.Settings 6.1]

This property disables the default input method. The purpose of this setting is to be able to override the default input method with the plain input method, disabling its functionality.

This property was introduced in QtQuick.VirtualKeyboard.Settings 6.1.


fullScreenMode : bool [since QtQuick.VirtualKeyboard.Settings 2.2]

This property enables the fullscreen mode for the virtual keyboard.

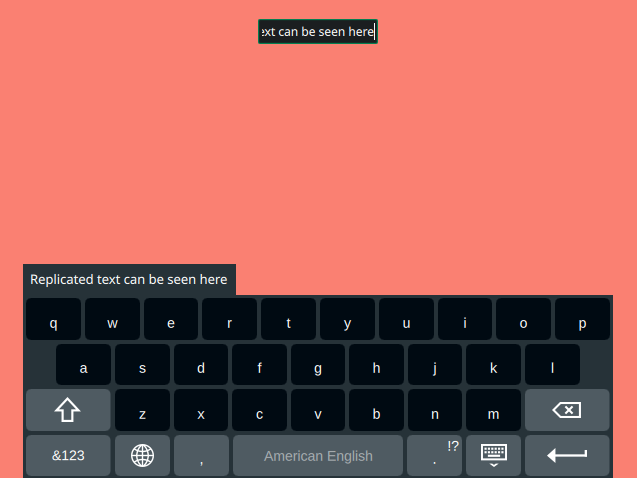

In fullscreen mode, the virtual keyboard replicates the contents of the focused input field to the fullscreen input field located at the top of the keyboard.

For example, to activate the fullscreen mode when the screen aspect ratio is greater than 16:9:

Binding {
    target: VirtualKeyboardSettings
    property: "fullScreenMode"
    value: (Screen.width / Screen.height) > (16.0 / 9.0)
}

This property was introduced in QtQuick.VirtualKeyboard.Settings 2.2.


handwritingModeDisabled : bool [since QtQuick.VirtualKeyboard.Settings 6.1]

This property allows to disable handwriting input mode, if it is otherwise available in the system.

When this property is set to true, the handwriting button is hidden from the keyboard layout and the user cannot switch to handwriting input mode.

This property was introduced in QtQuick.VirtualKeyboard.Settings 6.1.


hwrTimeoutForAlphabetic : bool [since QtQuick.VirtualKeyboard.Settings 6.1]

This property sets the handwriting recognition timeout for alphabetical languages.

By default, the timeout is 500 millliseconds.

This property was introduced in QtQuick.VirtualKeyboard.Settings 6.1.


hwrTimeoutForCjk : bool [since QtQuick.VirtualKeyboard.Settings 6.1]

This property sets the handwriting recognition timeout for Chinese / Japanese / Korean languages.

By default, the timeout is 500 millliseconds.

This property was introduced in QtQuick.VirtualKeyboard.Settings 6.1.


inputMethodHints : int [since QtQuick.VirtualKeyboard.Settings 6.1]

This property allows to set persistent input method hints.

The value of this property is combined with the input method hints from the input control. For example, to disable predictive text input, this property can be set to Qt::ImhNoPredictiveText.

This property was introduced in QtQuick.VirtualKeyboard.Settings 6.1.


locale : string [since QtQuick.VirtualKeyboard.Settings 2.0]

This property provides the default locale for the keyboard.

When the locale is not specified, the default system locale is used instead.

If the keyboard locale is different from the new default locale, keyboard language is changed immediately to reflect the new locale. If the locale setting is incorrect, or it is not in the list of supported locales, it is ignored and the default setting is used instead.

A locale is supported if it is included in the list of availableLocales.

This property was introduced in QtQuick.VirtualKeyboard.Settings 2.0.


styleName : string

This property provides the current style. Application can change the keyboard style by setting the styleName to different value.

The system wide keyboard style can be affected by setting the QT_VIRTUALKEYBOARD_STYLE environment variable.


userDataPath : bool [since QtQuick.VirtualKeyboard.Settings 6.1]

This property sets the user data path for the virtual keyboard and its plugins.

By default, the user data path is set to GenericConfigLocation + "/qtvirtualkeyboard".

This property was introduced in QtQuick.VirtualKeyboard.Settings 6.1.


visibleFunctionKeys : enumeration [since QtQuick.VirtualKeyboard.Settings 6.6]

This setting adjusts the visibility of specific function keys in the keyboard layout, allowing them to be either displayed or hidden. When a function key is not visible, its functionality remains accessible through the gear menu.

The value can be combination of the following flags:

  • QtVirtualKeyboard.KeyboardFunctionKeys.None All function keys are hidden
  • QtVirtualKeyboard.KeyboardFunctionKeys.Hide Hide function key is visible
  • QtVirtualKeyboard.KeyboardFunctionKeys.Language Language function key is visible
  • QtVirtualKeyboard.KeyboardFunctionKeys.All All function keys are visible

The default is QtVirtualKeyboard.KeyboardFunctionKeys.All.

This property was introduced in QtQuick.VirtualKeyboard.Settings 6.6.


wordCandidateList group

wordCandidateList.alwaysVisible : bool [since QtQuick.VirtualKeyboard.Settings 2.2]

wordCandidateList.autoHideDelay : int [since QtQuick.VirtualKeyboard.Settings 2.2]

NameDescription
autoHideDelayThis property defines the delay, in milliseconds, after which the word candidate list is hidden if empty.

If the value is 0, the list is immediately hidden when cleared.

If the value is -1, the list is visible until input focus changes, or the input panel is hidden.

The default value is 5000 milliseconds.

alwaysVisibleThis property defines whether the word candidate list should always remain visible.

The default value is false.

autoCommitWordThis property enables the automatic commit feature that is activated when the word candidate list is narrowed down to a single candidate.

The automatic commit feature takes effect when the word candidate list initially contains multiple words and is reduced to single word after additional input. This word will be selected and committed automatically without user interaction.

This property is set to false by default.

This QML property was introduced in QtQuick.VirtualKeyboard.Settings 2.2.


Signal Documentation

userDataReset()

The application triggers this signal prior to the user's data being reset to indicate to the virtual keyboard that all files must be closed in the user data directory.

Note: The corresponding handler is onUserDataReset.
