R6 Robot Teach Pendant

R6 Robot Teach Pendant is a teach pendant for the 6-DOF r6bot arm from ros2_control example 7. It shows the arm as a live Qt Quick 3D model driven by TF, and lets the operator jog individual joints, capture named waypoints, and replay them as a looping sequence — commanding the arm through trajectory_msgs/JointTrajectory messages. It is the most involved example of driving a robot (as opposed to monitoring one), and a thorough demonstration of consuming TF with FrameTransformer.

Running the example

1. Build the ros2_control demos in a workspace, in a ROS-sourced terminal:

   mkdir -p ~/ros2_ws/src && cd ~/ros2_ws/src
   git clone https://github.com/ros-controls/ros2_control_demos -b ${ROS_DISTRO}
   cd ~/ros2_ws/
   rosdep install --from-paths ./ -i -y --rosdistro ${ROS_DISTRO}
   colcon build --merge-install

2. Source your ROS 2 environment and launch Qt Creator from that shell.
3. Open examples/r6botteachpendant/CMakeLists.txt in Qt Creator, then build and run.
4. Launch the r6bot simulation in a separate terminal:

   source ~/ros2_ws/install/setup.bash
   ros2 launch ros2_control_demo_example_7 r6bot_controller.launch.py

Forwarding command-line arguments to ROS

Because a teach pendant may be launched with ROS arguments (for remapping or parameters), main.cpp initializes the ROS 2 context explicitly, forwarding argc/\c argv, before constructing the Qt application:

#include <QtRos2Core/qros2context.h>

int main(int argc, char *argv[])
{
    QRos2Context::init(argc, argv);      // hand ROS args to rclcpp
    QGuiApplication app(argc, argv);
    QQmlApplicationEngine engine;
    engine.loadFromModule("R6BotTeachPendant", "Main");
    return app.exec();
}

The view model

All ROS logic is centralized in R6BotViewModel.qml — no other QML file imports the bridge — which keeps the UI files purely presentational. It declares one Node hosting three entities:

import QtRos2.Core
import QtRos2.SensorMsgs as SensorMsgs
import QtRos2.Transforms
import QtRos2.TrajectoryMsgs as TrajectoryMsgs

Node {
    id: ros2Node
    nodeName: "qt_r6bot_teach_pendant"

    SensorMsgs.JointStateSubscriber { id: jointStateSubscriber; topic: "/joint_states" }
    FrameTransformer { id: tfXform }
    TrajectoryMsgs.JointTrajectoryPublisher {
        id: trajectoryPublisher
        topic: "/r6bot_controller/joint_trajectory"
    }
}

The CMake side enables the publisher/subscriber capabilities and links the trajectory message module. TF is consumed through QtRos2.Transforms (FrameTransformer), which wraps tf2_ros in C++, so no tf2_msgs QML module import is required:

qt_ros2_configure_target(r6botteachpendant
    CAPABILITIES PUBLISHER SUBSCRIBER
    MODULES QtRos2TrajectoryMessages
)

Reading joint state

The JointStateSubscriber's message drives the numeric panels. The view model derives a few convenient properties from it, including a moving flag used to sequence replay:

readonly property list<real> currentPositions: jointStateSubscriber.message.position
readonly property bool moving:
    jointStateSubscriber.message.velocity.some(vel => vel !== 0.0)

Commanding the arm

Motion commands are trajectory_msgs/JointTrajectory messages. The view model echoes the joint names from /joint_states, then builds a list of interpolated points ending in a zero-velocity settling point, and publishes:

trajectoryPublisher.publish({
    header: { stamp: { sec: 0, nanosec: 0 }, frameId: "" },
    jointNames: jointStateSubscriber.message.name,   // echo names from /joint_states
    points: points                                   // {positions, velocities, timeFromStart}
})

Jogging a single joint applies a delta to one position and sends a short single-point trajectory; the jog step sizes (Fine/Normal/Fast) are 0.02, 0.1, and 0.2 radians.

Driving the 3D model from TF

The 3D robot is driven entirely by TF, not by joint angles directly — the robot_state_publisher in the r6bot stack turns /joint_states into /tf, and the pendant consumes that. A single FrameTransformer maintains the TF buffer from its own /tf and /tf_static subscriptions; TFBufferManager.qml re-reads every edge of the kinematic chain whenever the transformer signals a change:

Connections {
    target: root.frameTransformer
    function onTransformsChanged() { root._refresh() }
}

function _refresh() {
    for (const e of root._edges) {                 // world→base_link→link_1→…→tool0
        if (root.frameTransformer.canTransform(e[0], e[1])) {
            const tr = root.frameTransformer.lookupTransform(e[0], e[1]).transform
            root[e[2] + "_p"] = Qt.vector3d(tr.translation.x, tr.translation.y, tr.translation.z)
            root[e[2] + "_q"] = Qt.quaternion(tr.rotation.w, tr.rotation.x,
                                              tr.rotation.y, tr.rotation.z)
        }
    }
}

Two details are worth copying into your own code:

• lookupTransform(parent, child) returns the child frame in its parent's coordinates — the local transform a nested scene-graph node needs. R6BotModel.qml is a nested Node chain mirroring the URDF, and each link binds its local position/\c rotation to one edge.
• A ROS quaternion is (x, y, z, w) but Qt.quaternion() takes (w, x, y, z) — note the reordering above. The model is also scaled from meters to millimeters and rotated to map ROS Z-up into Qt Quick 3D's Y-up convention.

A transformsReady flag (set once every edge resolves) gates the model's visibility, so nothing renders until the whole chain is available.

Waypoints and replay

Waypoints capture the joint positions (from /joint_states), not TF, and are held in memory for the session. Replay is velocity-driven rather than timed: after sending a waypoint, the view model waits for the arm to come to rest (all joint velocities return to zero) before sending the next one, using the moving transition:

onMovingChanged: {
    if (wasMoving && !moving) {           // the arm just stopped
        if (nextWaypointToSend >= waypoints.length) {
            if (loopEnabled) { restartFromFirstWaypoint() }
            else            { executing = false }
        } else {
            sendNextWaypoint()
        }
    }
    wasMoving = moving
}

Per-waypoint duration is derived from the largest joint delta, and stopping publishes the current position with zeroed velocities to halt smoothly.

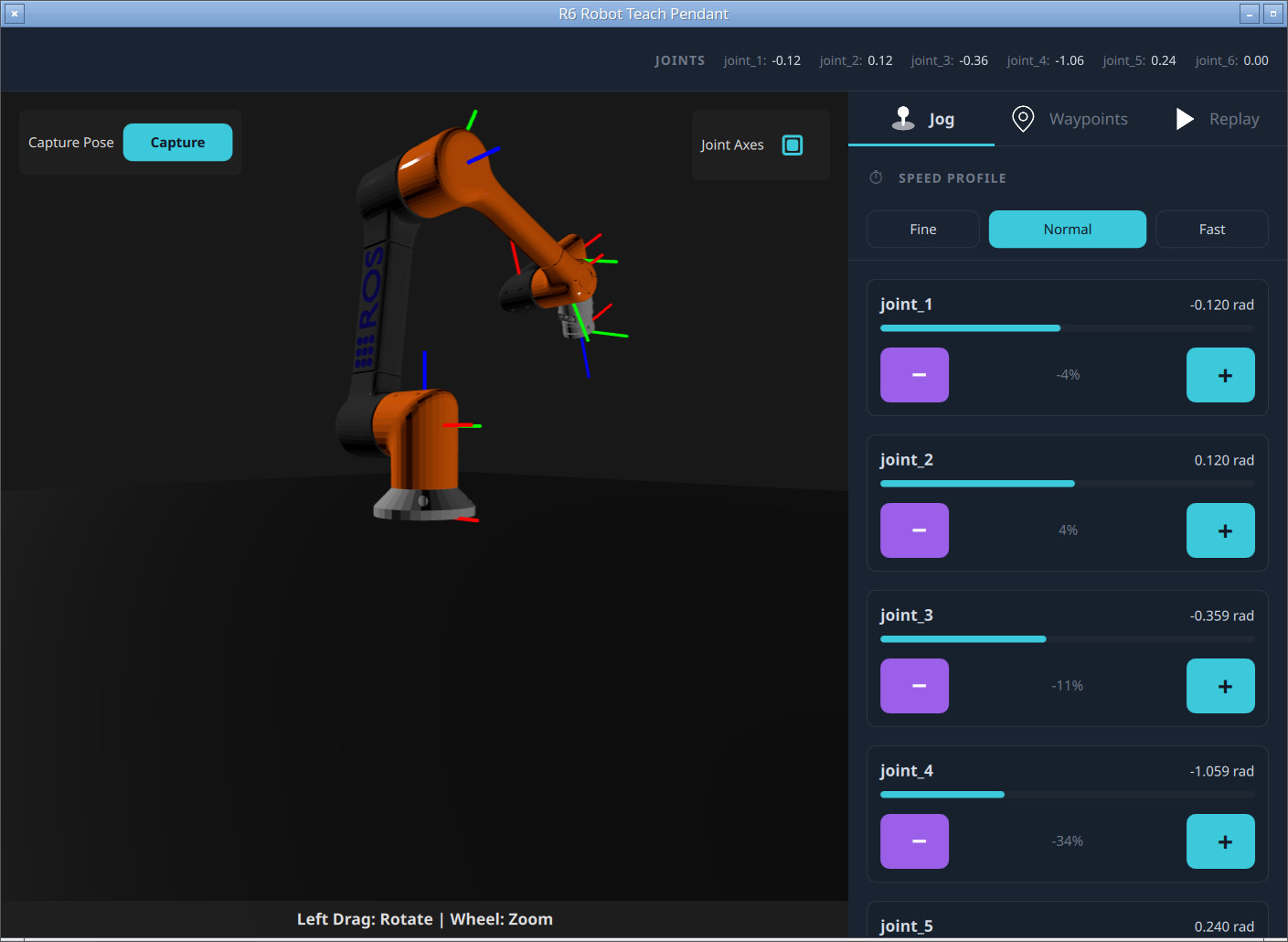

The UI at a glance

• A status bar shows the live joint readout from /joint_states.
• The large 3D view shows the arm (with an optional per-joint axis triad) driven by TF.
• A tabbed side panel offers Jog (per-joint +/- with step size), Waypoints (capture, list, jump-to), and Replay (play sequence, progress, loop).

Files:

• r6botteachpendant/CMakeLists.txt
• r6botteachpendant/JogPanel.qml
• r6botteachpendant/JointAxes.qml
• r6botteachpendant/Link_0.qml
• r6botteachpendant/Link_1.qml
• r6botteachpendant/Link_2.qml
• r6botteachpendant/Link_3.qml
• r6botteachpendant/Link_4.qml
• r6botteachpendant/Link_5.qml
• r6botteachpendant/Link_6.qml
• r6botteachpendant/Main.qml
• r6botteachpendant/R6BotModel.qml
• r6botteachpendant/R6BotView3D.qml
• r6botteachpendant/R6BotViewModel.qml
• r6botteachpendant/ReplayPanel.qml
• r6botteachpendant/StatusBar.qml
• r6botteachpendant/TFBufferManager.qml
• r6botteachpendant/Theme.qml
• r6botteachpendant/WaypointPanel.qml
• r6botteachpendant/jog.svg
• r6botteachpendant/main.cpp
• r6botteachpendant/play.svg
• r6botteachpendant/waypoint.svg

Images:

• r6botteachpendant/r6botteachpendant.jpg
