Qt Quick Ultralite multiscreen Example

Demonstrates how to use multiple screens in Qt Quick Ultralite.

Overview

The multiscreen example shows how a single Qt Quick Ultralite application can display content on separate screens.

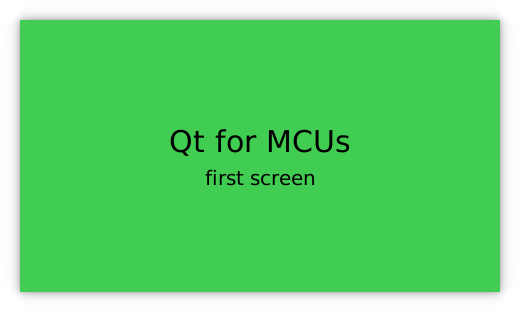

First screen.

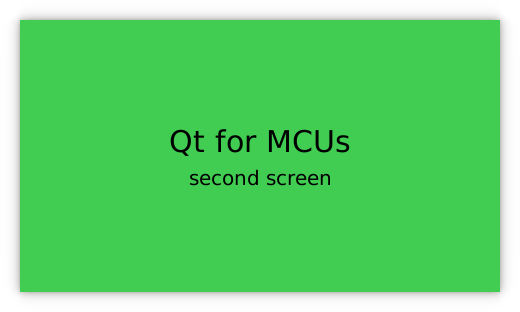

Second screen.

Target platforms

Infineon TRAVEO T2G

Project structure

The minimal example consists of only three files, CMakeLists.txt, mcu_multiscreen.qmlproject and multiscreen.qml.

The CMake project file contains a basic build script, the multiscreen.qml defines the UI and mcu_minimal.qmlproject contains a simple project configuration to load multiscreen.qml into the project.

CMake project file

# Copyright (C) 2025 The Qt Company Ltd.
# SPDX-License-Identifier: LicenseRef-Qt-Commercial
cmake_minimum_required (VERSION 3.21.1)

project(multiscreen VERSION 0.0.1 LANGUAGES C CXX ASM)
if (NOT TARGET Qul::Core)
    find_package(Qul)
endif()

qul_add_target(multiscreen QML_PROJECT mcu_multiscreen.qmlproject GENERATE_ENTRYPOINT)

app_target_setup_os(multiscreen)

if(NOT CMAKE_CROSSCOMPILING AND NOT WIN32)
    add_custom_command(TARGET multiscreen
        COMMAND strip multiscreen -o multiscreen.stripped
        DEPENDS multiscreen)
endif()

Application UI

import QtQuick 2.15
import QtQuickUltralite.Layers 2.0

ApplicationScreens {
    Screen {
        backgroundColor: "#41CD52"
        ItemLayer {
            anchors.centerIn: parent
            depth: ItemLayer.Bpp32Alpha
            width: textPrimary.width
            height: textPrimary.height

            Rectangle {
                anchors.fill: parent
                color: "#41CD52"
            }

            Column {
                id: textPrimary
                anchors.centerIn: parent
                spacing: 5
                Text {
                    anchors.horizontalCenter: parent.horizontalCenter
                    font.pixelSize: 30
                    text: "Qt for MCUs"
                }
                Text {
                    anchors.horizontalCenter: parent.horizontalCenter
                    font.pixelSize: 20
                    text: "first screen"
                }
            }
        }
    }

    Screen {
        backgroundColor: "#41CD52"
        ItemLayer {
            z: 1
            anchors.centerIn: parent
            depth: ItemLayer.Bpp32Alpha
            width: textSecondary.width
            height: textSecondary.height

            Rectangle {
                anchors.fill: parent
                color: "#41CD52"
            }

            Column {
                id: textSecondary
                anchors.centerIn: parent
                spacing: 5
                Text {
                    anchors.horizontalCenter: parent.horizontalCenter
                    font.pixelSize: 30
                    text: "Qt for MCUs"
                }
                Text {
                    anchors.horizontalCenter: parent.horizontalCenter
                    font.pixelSize: 20
                    text: "second screen"
                }
            }
        }
    }
}
