Tutorial: Starting to Test Java Applications

For this chapter we will use a simple Address Book application written in Java as our AUT, in <SQUISHDIR>/examples/java/addressbook. It allows users to load an existing address book or create a new one, add, edit, and remove entries. 3 versions are available, depending on which toolkit you want to use (AWT/Swing, SWT or JavaFX).

The screenshot below shows the application in action with a user adding a new name and address.

If you compile it yourself, you can use AddressBook.class as the AUT since it also contains the main() function. You can also use a batch file, or shell script. Some executable launchers even work as an AUT.

Example Test Suites

The tests that we will discuss in the following sections are in sub-folders, for example, the versions of the tests using the Python language are in <SQUISHDIR>/examples/java/addressbook/suite_py, with the tests written in other languages in similarly named sub-folders.

Squish Multi-Process Architecture and IPC

Squish runs a small server, squishserver, that handles the communication between the AUT and the test script. The test script is executed by the squishrunner tool, which in turn connects to squishserver. squishserver starts the instrumented AUT on the device, which starts the Squish Hook. With the hook in place, squishserver can query AUT objects regarding their state and can execute commands on behalf of squishrunner. squishrunner directs the AUT to perform whatever actions the test script specifies.

All the communication takes place using network sockets which means that everything can be done on a single machine, or the test script can be executed on one machine and the AUT can be tested over the network on another machine.

The following diagram illustrates how the individual Squish tools work together.

Tests can be written and executed using the Squish IDE, in which case squishserver is started and stopped automatically, and the test results are displayed in the Squish IDE's Test Results view. The following diagram illustrates what happens behind the scenes when the Squish IDE is used.

Under the covers, squishrunner is used to execute test cases. If we need to automate the execution of test cases from a script, we would use this command directly.

Making an Application Testable

In most cases, nothing special needs to be done to make a Java application testable. If you do have problems testing your own AUT with Squish, the most likely cause is a mismatch in Java versions. This is probably due to the AUT using its own packaged JRE, which is not compatible with the one Squish is configured for. You can tell Squish to use another Java by invoking the squishconfig command:

$ <SQUISHDIR>/bin/squishconfig --java=/path/to/java

Creating Test Suites from Squish IDE

Start up the Squish IDE, by clicking or double-clicking the Squish IDE icon, by launching Squish IDE from the taskbar menu or by executing squishide on the command line, whichever you prefer and find suitable for the platform you are using.

Once Squish starts up, you might be greeted with a Welcome Page. Click the Workbench button in the upper right to dismiss it. Then, the Squish IDE will look similar to the screenshot.

Once Squish has started, click File > New Test Suite to pop-up the New Test Suite wizard shown below.

Enter a name for your test suite and choose the folder where you want the test suite to be stored. We have called it suite_py. Once the details are complete, click Next to go on to the Toolkit (or Scripting Language) page.

For the 'Toolkit' page, select Java, which covers AWT, Swing, SWT, and JavaFX. Then click Next to go to the Scripting Language page.

Choose your desired scripting language on this page. Our example tests are in 5 different languages and you can pick the one that suits you. The functionality offered by Squish is the same for all languages.

If you are creating a new test suite for an AUT that Squish already knows about, simply click the combobox to pop-down the list of AUTs and choose the one you want. If the combobox is empty or your AUT isn't listed Browse to <SQUISHDIR>/examples/java/addressbook and choose AddressBookSwing.jar.

Click Finish and the wizard will close and Squish IDE will look similar to the screenshot below.

Recording Tests and Verification Points

Recordings are made into existing test cases. You can create a New Script Test Case in the following ways:

• Select File > New Test Case to open the New Squish Test Case wizard, enter the name for the test case, and select Finish.
• Click the New Script Test Case () toolbar button to the right of the Test Cases label in the Test Suites view. This creates a new test case with a default name, which you can easily change.

Give the new test case the name tst_general.

Squish automatically creates a sub-folder inside the test suite's folder with this name and also a test file, for example test.py. If you choose JavaScript as the scripting language, the file is called test.js, and correspondingly for Perl, Ruby, or Tcl.

If you get a sample .feature file instead of a "Hello World" script, click the arrow left of the Run Test Suite () and select New Script Test Case ().

To make the test script file (such as, test.js or test.py) appear in an Editor view, click or double-click the test case, depending on the Preferences > General > Open mode setting. This selects the Script as the active one and makes visible its corresponding Record () and Run Test Case () buttons.

The checkboxes are used to control which test cases are run when the Run Test Suite () toolbar button is clicked. We can also run a single test case by clicking its Run Test Case () button. If the test case is not currently active, the button may be invisible until the mouse is hovered over it.

Initially, the script's main() function logs Hello World to the test results.

Once the new test case has been created, we are free to write test code manually or to record a test. Clicking on the test case's Record () button replaces the test's code with a new recording. Alternatively, you can record snippets and insert them into existing test cases, as instructed in How to Edit and Debug Test Scripts.

Recording Our First Test

Here is a test scenario we would like to record:

• Open the MyAddresses.adr address file.
• Navigate to the second address and then add a new name and address.
• Navigate to the fourth address (that was the third address) and change the surname field.
• Navigate to the first address and remove it.
• Verify that the first address is now the new one that was added.

Click the Record () button to the right of the tst_general test case shown in the Test Suites view's Test Cases list. This will cause Squish to run the AUT so that we can interact with it. From the AUT, perform the following actions—and don't worry about how long it takes since Squish doesn't record idle time:

1. Click File > Open, and once the file dialog appears, type MyAddresses.adr into the line edit, then click the Open button.
2. Click the second row, then click Edit > Add, then click the first line edit in the Add dialog and type in "Jane". Now click (or tab to) the second line edit and type in "Doe". Continue similarly, to set an email address of "jane.doe@nowhere.com" and a phone number of "555 123 4567". Don't worry about typing mistakes—just backspace delete as normal and fix them. Finally, click the OK button. There should now be a new second address with the details you typed in.
3. Click the fourth row's second (surname) column, delete its text and replace it with "Doe". Then press Enter to confirm your edit.
4. Now click the first row, then click Edit > Remove, and then click the Yes button in the message box. The first row should be gone, so your "Jane Doe" entry should now be the first one.
5. Click the Verify () toolbar button in the Squish Control Bar and select Properties.



   This will make the Squish IDE appear.

6. In the Application Objects view, use the Object Picker () to select the upper-left table cell, to make its properties appear in the Properties view, and then check the text property's checkbox.
7. At this point, double-check in the Verification Point Creator that the Type: is set to Scriptified Property, in case it was set to something else previously.
8. Navigate Up () to the parent row, and expand its children.
9. Click the column_1 object of that row and check its text property.
10. Finally, click the Save and Insert Verifications button in Verification Point Creator.



    After the verification points are inserted, the Squish IDE's window will be hidden again, and the Control Bar window and the AUT will be back in view.

11. In the AUT click File > Quit, then click No in the message box, since we don't want to save any changes.

After we quit the AUT, the recorded test will appear in Squish IDE as the screenshot illustrates.

If the recorded test doesn't appear, click (or double-click depending on your platform and settings) the tst_general test case; this will make Squish show the test's test.py file in an editor window.

Now that we've recorded the test, we should be able to play it back. The two verifications we inserted will be checked on playback.

After the recording is finished, we can later Insert Additional Verification Points through the use of breakpoints and recording snippets.

Running Tests from IDE

To run a test case in the Squish IDE, click the Run Test Case () that appears when the test case is hovered or selected in the Test Suites view.

To run two or more test cases one after another or to run only the selected test cases, click Run Test Suite ().

Running Tests from Command Line

To playback a recorded test from the command line, we execute the squishrunner program. We provide squishrunner the path to a test suite, and optionally also the name of a test case.

A squishserver must be running when running a test, and we can provide squishrunner an IP/Port of an already running one, or use the --local option which creates one for the duration of the process. For more information, see squishserver.

For example, assuming we are in the directory that contains the test suite's directory:

squishrunner --testsuite suite_py --testcase tst_general --local

Examining the Generated Code

If you look at the code in the screenshot (or the code snippet shown below) you will see that it consists of lots of waitForObject() and waitForObjectItem() calls as parameters to various other calls such as mouseClick(), clickButton(), and type().

The waitForObject() function waits until a GUI object is ready to be interacted with (i.e., becomes visible and enabled), and is then followed by some function that interacts with the object.

Here's an extract that shows how Squish records clicking the Edit menu's Add option, typing in Jane Doe's details into the Add dialog, and clicking OK at the end to close the dialog and update the table.

    activateItem(waitForObjectItem(names.address_Book_MyAddresses_adr_JMenuBar, "Edit"))
    activateItem(waitForObjectItem(names.edit_JMenu, "Add..."))
    type(waitForObject(names.address_Book_Add_Forename_JTextField), "Jane")
    type(waitForObject(names.address_Book_Add_Surname_JTextField), "Doe")
    type(waitForObject(names.address_Book_Add_Email_JTextField), "jane.doe@nowhere.com")
    type(waitForObject(names.address_Book_Add_Phone_JTextField), "123 555 1212")
    clickButton(waitForObject(names.address_Book_Add_OK_JButton))

    activateItem(waitForObjectItem(names.addressBookMyAddressesAdrJMenuBar, "Edit"));
    activateItem(waitForObjectItem(names.editJMenu, "Add..."));
    type(waitForObject(names.addressBookAddForenameJTextField), "Jane");
    type(waitForObject(names.addressBookAddSurnameJTextField), "Doe");
    type(waitForObject(names.addressBookAddEmailJTextField), "jane.doe@nowhere.com");
    type(waitForObject(names.addressBookAddPhoneJTextField), "123 555 1212");
    clickButton(waitForObject(names.addressBookAddOKJButton));

    activateItem(waitForObjectItem($Names::address_book_myaddresses_adr_jmenubar, "Edit"));
    activateItem(waitForObjectItem($Names::edit_jmenu, "Add..."));
    type(waitForObject($Names::address_book_add_forename_jtextfield), "Jane");
    type(waitForObject($Names::address_book_add_surname_jtextfield), "Doe");
    type(waitForObject($Names::address_book_add_email_jtextfield), "jane.doe\@nowhere.com");
    type(waitForObject($Names::address_book_add_phone_jtextfield), "123 555 1212");
    clickButton(waitForObject($Names::address_book_add_ok_jbutton));

    activateItem(waitForObjectItem(Names::Address_Book_MyAddresses_adr_JMenuBar, "Edit"))
    activateItem(waitForObjectItem(Names::Edit_JMenu, "Add..."))
    type(waitForObject(Names::Address_Book_Add_Forename_JTextField), "Jane")
    type(waitForObject(Names::Address_Book_Add_Surname_JTextField), "Doe")
    type(waitForObject(Names::Address_Book_Add_Email_JTextField), "jane.doe@nowhere.com")
    type(waitForObject(Names::Address_Book_Add_Phone_JTextField), "123 555 1212")
    clickButton(waitForObject(Names::Address_Book_Add_OK_JButton))

    invoke activateItem [waitForObjectItem $names::Address_Book_MyAddresses_adr_JMenuBar "Edit"]
    invoke activateItem [waitForObjectItem $names::Edit_JMenu "Add..."]
    invoke type [waitForObject $names::Address_Book_Add_Forename_JTextField] "Jane"
    invoke type [waitForObject $names::Address_Book_Add_Surname_JTextField] "Doe"
    invoke type [waitForObject $names::Address_Book_Add_Email_JTextField] "jane.doe@nowhere.com"
    invoke type [waitForObject $names::Address_Book_Add_Phone_JTextField] "123 555 1212"
    invoke clickButton [waitForObject $names::Address_Book_Add_OK_JButton]

This script has been edited for brevity. Originally, the tester used the keyboard to tab from one text field to another, but we removed those interactions since they were not necessary for playback: the first argument to type() specifies which object to send the key events to.

If the tester had moved the focus by clicking the mouse and clicked the OK button by tabbing to it and pressing Spacebar, or any other combination of interactions, the outcome should be the same, but since TMTOWTDI, each of the ways can be recorded and tested separately by Squish.

Notice in the code snippet that there are no explicit delays. (It is possible to force a delay using Squish's snooze() function.) This is because the waitForObject() function delays until the object is ready — thus allowing Squish to run as fast as the GUI toolkit can cope with, but no faster.

Symbolic Names

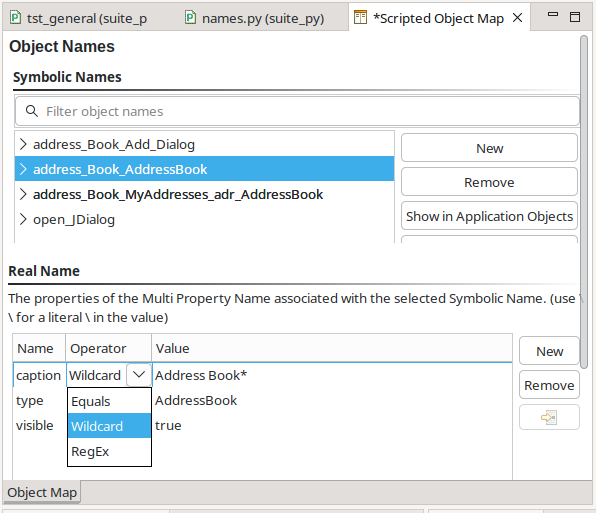

Squish recordings refer to objects using variables that begin with a names. prefix. These are known as Symbolic Names. Each variable contains, as a value, the corresponding Real Name.

The advantage of using symbolic names (instead of real names) in your scripts, is that if the application changes in a way that results in different names being needed, it is possible to update Squish's Object Map and thereby avoid the need to change our test scripts.

When a Symbolic Name is under the cursor, the editor's context menu allows you to Open Symbolic Name, showing its entry in the Object Map, or Convert to Real Name, which places an inline mapping in your script language at the cursor, allowing you to hand-edit the properties in the script itself.

See How to Identify and Access Objects for more details.

Verification Points Explained

In the previous section we saw how easy it is to insert verification points during the recording of test scripts. They can be inserted into existing test scripts by recording snippets, or by editing a test script and calling Squish's test. functions such as test.compare() and test.verify().

Squish can verify different kinds of data:

• Properties VPs, which can be Scriptified or XML-based. They verify that 1 or more properties of 1 or more objects have certain values.
• Table VPs, which verify the contents of an entire table.
• Screenshot VPs, for verifying images of widgets.
• Visual VPs, which contain properties and screenshots for an entire tree of objects.

Regular Verification Points are stored as XML files in the test case or test suite resources, and contain the value(s) that need to be compared. This includes images in the case of Screenshot or Visual VPs. These verification points can be reused across test cases, and can verify many values in a single line of script code.

Scriptified Property Verification points are direct calls to the test.compare function and look like regular script code.

Further reading: How to Create and Use Verification Points.

We will verify that the "Jane Doe" entry's email address and phone number match the ones entered, and put the verifications immediately after the ones we inserted during recording.

To insert a verification point using the Squish IDE we start by putting a break point in the script (on an executable line of code — empty lines won't work), at the point where we want to verify.

We set a breakpoint just before the test case exits the AUT. This is done simply by double-clicking, or right-clicking in the gutter (next to the line number in the editor) and selecting the Add Breakpoint context menu item.

The first address in the table should be that of "Jane Doe".

Having set the breakpoint, we Run Test Case (). The will stop when the breakpoint is reached. Squish's main window will reappear (which may obscure the AUT). At this point, the Squish IDE will switch to the Test Debugging Perspective.

Perspectives and Views

The Squish IDE works just like the Eclipse IDE. If you aren't used to Eclipse, it is crucial to understand the following key concepts: Views and Perspectives. In Eclipse, and therefore in the Squish IDE, a View is essentially a child window, such as a dock window or a tab in an existing window. A Perspective is a collection of views arranged together. Both are accessible through the Window menu.

The Squish IDE is supplied with the following perspectives:

• Test Management Perspective that the Squish IDE starts with, and that is shown in all previous screenshots
• Test Debugging Perspective
• Spy Perspective

You can modify these perspectives to show additional views, to hide views that you don't want, or to create your own perspectives with exactly the views you want.

If you notice all of your Views change dramatically, it just means that the perspective changed. Use the Window menu to change back to the perspective you want. Keep in mind, Squish automatically changes perspectives to reflect the current situation, so you should not need to change perspective manually very often.

When Squish stops at a breakpoint, the Squish IDE automatically changes to the Test Debugging Perspective. The perspective shows the Variables view, the Editor view, the Debug view, the Application Objects view, and the Properties view, Methods view, and Test Results view.

The normal Test Management Perspective can be returned to at any time by choosing it from the Window menu (or by clicking its toolbar button), although the Squish IDE will automatically return to it if you Terminate() or Resume() to completion.

Inserting Additional Verification Points

We want to verify the text property of the last 2 columns of the top row, containing Email Address and Phone.

1. To insert the first verification point, use the Object Picker () to select the correct table cell (first row, third column), and then check the text property in the Properties View.
2. After it is checked, the Verification Point Creator appears with one verification value.
3. Navigate Up () in the Application Objects tree, expand its children to find the last column's table cell.
4. Select on the last column table cell, and then and check its text property checkbox.

Now both verifications will appear in the Verification Point Creator as the screenshot shows.

Click Save and Insert Verifications to insert the verifications.

At this point, we can Terminate() or Resume(). We will see the verifications after the AUT terminates.

We should now disable the break point. Right click the break point and click the Disable Breakpoint menu option in the context menu.

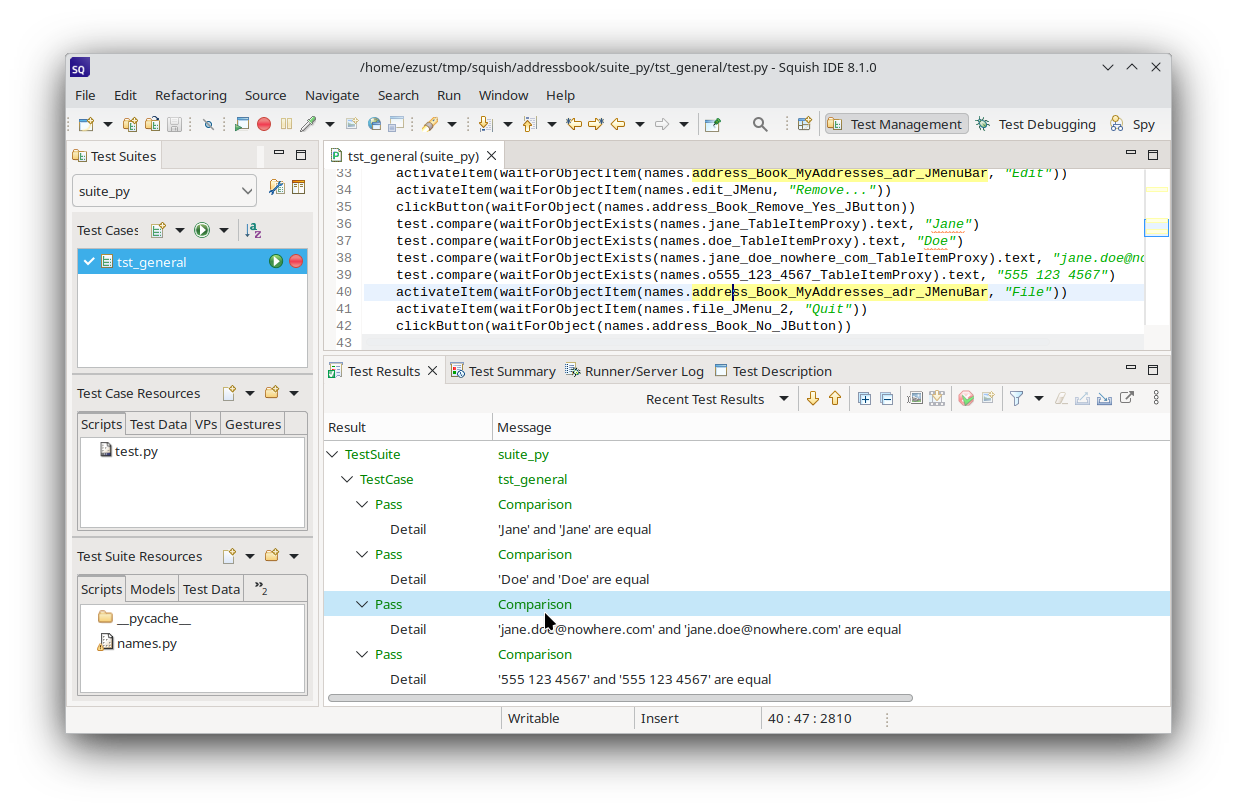

Click Run Test Case (). This time we will get some additional test results — as the screenshot shows — we have expanded them to show details.

Now there are four passing tests comparing the forename, lastname, email, and phone number of the newly inserted entry.

Test Results

After each test run finishes, the test results—including those for the verification points—are shown in the Test Results view at the bottom of the Squish IDE.

This is a detailed report of the test run and would also contain details of any failures or errors, etc. If you click on a Test Results item, the Squish IDE highlights the script line which generated it. If you expand the item, you can see additional details of it.

Squish's interface for reporting test results is very flexible. The default report generator simply prints the results to stdout when Squish is run from the command line, or to the Test Results view when Squish IDE is being used. You can save the test results from the Squish IDE as XML by right clicking on the Test Results and choosing the Export Results menu option. For a list of report generators, see squishrunner –reportgen: Generating Reports.

It is possible to Upload the Results to Test Center, where they are stored in a database for analysis later.

Manually Written Property Verifications

Another way to insert verification points is to write the code manually. We can add our own calls to Squish's test. functions, such as test.compare and test.verify in an existing script.

1. Set a breakpoint where we intend on adding our verifications.
2. Run Test Case () until it stops there.
3. Use the Object Picker () or navigate in the Application Objects tree for the the object we want to verify.
4. Right click the Application Object entry and select the Copy Symbolic Name context menu option—this adds the object to the Object Map if necessary.

Now we can edit the test script, paste name into the script where we need to find the object.

(Don't forget to disable the break point once it isn't needed any more.)

For this manual verification, we want to check the number of addresses present in the table after reading in the MyAddresses.adr file, then after the new address is added, and finally after the first address is removed. The screenshot shows two of the lines of code we entered to get one of these three verifications, plus the results of running the test script.

We use this reference to call the JTable's rowCount property, which, because of the JavaBeans specification, will result in a call to the getRowCount() Java getter function.

We verify that the value is what we expect it to be using test.compare().

Here is the code we entered manually.

    table = waitForObject(names.address_Book_MyAddresses_adr_JTable)
    test.compare(table.getRowCount(), 125)

    var table = waitForObject(names.addressBookMyAddressesAdrJTable);
    test.compare(table.getRowCount(), 125);

    my $table = waitForObject($Names::address_book_myaddresses_adr_jtable);
    test::compare($table->getRowCount(), 125);

    table = waitForObject(Names::Address_Book_MyAddresses_adr_JTable)
    Test.compare(table.rowcount, 125)

    set table [waitForObject $names::Address_Book_MyAddresses_adr_JTable]
    test compare [invoke $table getRowCount] 125

For more examples of manually written code, see Creating Tests by Hand, How to Create Test Scripts, and How to Test Applications - Specifics.

Creating Tests by Hand

Now that we have seen how to record a test and modify it by inserting verification points, we are ready to see how to create tests manually. The easiest way to do this is to modify and refactor recorded tests, although it is also perfectly possible to create manual tests from scratch.

For each object of interest, we need a Symbolic or Real Name to access it.

If we have not interacted yet with the object of interest, we can get a name for it in a couple of ways.

1. Record a dummy snippet: click somewhere in your test case that is out of the way, Record (), click on the object(s) of interest, Stop Recording(), and throw away the snippet.
2. Use Application Objects: Click the Launch AUT () toolbar button. This starts the AUT and switches to the Spy Perspective. From Application Objects, use the Object Picker () or tree navigation to choose the desired object. Then use the context menu to Add to Object Map or Copy (Symbolic | Real) Name to Clipboard (so that we can paste it into our test script).

We can view the Object Map by clicking the Object Map() toolbar button, or from the Script Editor context menu, Open Symbolic Name when right-clicking on an object name in the script editor.

Every application object that Squish interacts with is listed here, either as a top-level object, or as a child object (the view is a tree view).

We can retrieve the symbolic name used by Squish in recorded scripts by right-clicking the object we are interested in and then clicking the context menu's Copy Object Name (to get the Symbolic Name variable) or Copy Real Name (to get the actual key-value pairs stored in the variable). This is useful for when we want to modify existing test scripts or when we want to create test scripts from scratch, as we will see later on in the tutorial.

Modifying and Refactoring Recorded Tests

Suppose we want to test the AUT's Add functionality by adding three new names and addresses. We could record such a test but it is just as easy to do everything in code. The steps we need the test script to do are:

1. Create a new address book
2. For each new name and address, Add, then fill in the details, and then click Ok.

We want to verify at the start that there are no rows of data, and at the end that there are three rows. We will refactor as we go, to make our code as neat and modular as possible.

First, we must create a new test case. Click New Script Test Case () and set the test case's name to be tst_adding.

The first thing we need is a way to start the AUT and then invoke an action. Here are the first few lines from the recorded tst_general script:

import names
import os

def main():
    startApplication('"' + os.environ["SQUISH_PREFIX"] + '/examples/java/addressbook/AddressBookSwing.jar"')

    activateItem(waitForObjectItem(names.address_Book_JMenuBar, "File"))
    activateItem(waitForObjectItem(names.file_JMenu, "Open..."))

import * as names from 'names.js';

function main() {
    startApplication('"' + OS.getenv("SQUISH_PREFIX") +
        '/examples/java/addressbook/AddressBookSwing.jar"');
    activateItem(waitForObjectItem(names.addressBookJMenuBar, "File"));
    activateItem(waitForObjectItem(names.fileJMenu, "Open..."));

require 'names.pl';

sub main
{
        startApplication("\"$ENV{'SQUISH_PREFIX'}/examples/java/addressbook/AddressBookSwing.jar\"");
    activateItem(waitForObjectItem($Names::address_book_jmenubar, "File"));
    activateItem(waitForObjectItem($Names::file_jmenu, "Open..."));

require 'squish'
require 'names'

include Squish

def main
    startApplication("\"#{ENV['SQUISH_PREFIX']}/examples/java/addressbook/AddressBookSwing.jar\"")
    activateItem(waitForObjectItem(Names::Address_Book_JMenuBar, "File"))
    activateItem(waitForObjectItem(Names::File_JMenu, "Open..."))

source [findFile "scripts" "names.tcl"]

proc main {} {
    startApplication "\"$::env(SQUISH_PREFIX)/examples/java/addressbook/AddressBookSwing.jar\""
    invoke activateItem [waitForObjectItem $names::Address_Book_JMenuBar "File"]
    invoke activateItem [waitForObjectItem $names::File_JMenu "Open..."]

The steps in this code are:

• Start the AUT
• Wait for the menu bar,
• Activate the menu bar
• Wait for the menu item
• Activate the menu item

In both cases we have used the waitForObjectItem() function. This function is used for multi-valued objects (such as lists, tables, trees—or in this case, a menubar and a menu), and allows us to access the object's items, by passing the name of the object containing the item and the item's text as arguments.

Object Not Found Dialog

If the AUT appears to freeze during test execution, wait for Squish to time out the AUT (about 20 seconds), and show the Object Not Found dialog, indicating an error like this:

This usually means that Squish doesn't have an object with the given name, or property values, in the Object Map. From here, we can Pick a new object, Debug, Throw Error or, after picking a new object, Retry.

Picking a new object will update the object map entry for the symbolic name. In addition to the Object Picker (), we can use the Spy's Application Objects view to locate the objects we are interested in and use the Add to the Object Map context menu action to access their real or symbolic names.

Naming is important because it is probably the part of writing scripts that leads to the most error messages, usually of the object ... not found kind shown above. Once we have identified the objects to access in our tests, writing test scripts using Squish is very straightforward. Especially, as Squish most likely supports the scripting language you are most familiar with.

Improving Object Names

If you look at the recorded test (tst_general) or in the Object Map you will see that Squish sometimes uses different names for the same things. For example, the menubar is identified in two different ways, initially as address_Book_JMenuBar, and later as address_Book_MyAddresses_adr_JMenuBar.

The reason for this is that Squish needs to uniquely identify every object in a given context, and it uses whatever information it has to hand. So in the case of identifying Java components, Squish sets the caption property, which is a Synthetic Property, taking on the value of a window's title, caption, or text.

In the situation where there are multiple instances of AddressBook, this might be a useful thing, but if there is only one AddressBook instance at any given time, this object-name is too specific and won't always work.

When we write our test scripts, we want our functions to find their objects regardless of what the caption is.

One way to accomplish that, is to start with a new test suite, and add one object map entry for the AddressBook, customized for this AUT, which is general enough for all of the children entries that are added to the Object Map later.

Open the Object Map() and select address_book_AddressBook, the entry for the main window.

Under Real Name select the caption property. Double-click the Operator and select Wildcard. We can set the Value to be Address Book* so it matches all possible strings, or we could simply remove caption from the realname, since there is only one instance of AddressBook at any given time. Save the Object Map and observe an Eclipse Refactoring operation.

The customized object map entry looks like this:

address_Book_AddressBook = {"type": "AddressBook", "visible": True}

export var addressBookAddressBook = {"type": "AddressBook", "visible": true};

our $address_book_addressbook = {"type" => "AddressBook", "visible" => "true"};

Address_Book_AddressBook = {:type => "AddressBook", :visible => true}

set Address_Book_AddressBook [::Squish::ObjectName type AddressBook visible true]

Subsequent recordings will make use of this entry (as long as more specific entries do not exist) instead of creating new entries which are context sensitive to the window title. You might want to start a new Test Suite with only this object map entry and observe how the newly added object names are fewer and simpler after that.

Pre-Populating the Object Map

We want to add some entries to the object map. One way to do this is by recording a dummy test case. So click New Script Test Case () and set the test case's name to be dummy. Then click the dummy test case's Record () button, and record these steps.

• once the AUT starts, click File > New
• click the (empty) table
• click Edit > Add
• add an item, then press Return or click OK.
• click File > Quit to finish
• say No to saving changes.

Run Test Case () to confirm that everything works okay. The sole purpose of this is to make sure that Squish adds the necessary names to the Object Map() since it is probably quicker to do it this way than to use the Spy for every object of interest. After replaying, you can delete the test case if you want to.

Now we can hand-write test scripts. We will start with the main function, and then we will look at the supporting functions that it calls.

import names
import os

def main():
    startApplication('"' + os.environ["SQUISH_PREFIX"] + '/examples/java/addressbook/AddressBookSwing.jar"')

    invokeMenuItem("File", "New...")
    jtable = waitForObject({"type": "javax.swing.JTable"})
    test.verify(jtable.rowcount == 0)
    data = [("Andy", "Beach", "andy.beach@nowhere.com", "555 123 6786"),
            ("Candy", "Deane", "candy.deane@nowhere.com", "555 234 8765"),
            ("Ed", "Fernleaf", "ed.fernleaf@nowhere.com", "555 876 4654")]
    for fields in data:
        addNameAndAddress(fields)
    test.compare(jtable.rowcount, len(data))
    closeWithoutSaving()

import * as names from 'names.js';

function main()
{
    startApplication('"' + OS.getenv("SQUISH_PREFIX") +
        '/examples/java/addressbook/AddressBookSwing.jar"');
    invokeMenuItem("File", "New...");
    var jtable = waitForObject({"type": "javax.swing.JTable"});
    test.verify(jtable.getRowCount() == 0);
    var data = [
        ["Andy", "Beach", "andy.beach@nowhere.com", "555 123 6786"],
        ["Candy", "Deane", "candy.deane@nowhere.com", "555 234 8765"],
        ["Ed", "Fernleaf", "ed.fernleaf@nowhere.com", "555 876 4654"]];
    for (var row = 0; row < data.length; ++row) {
        addNameAndAddress(data[row]);
    }
    test.compare(jtable.getRowCount(), data.length);
    closeWithoutSaving();
}

require 'names.pl';

sub main
{
    startApplication("\"$ENV{'SQUISH_PREFIX'}/examples/java/addressbook/AddressBookSwing.jar\"");
    invokeMenuItem("File", "New...");
    my $jtable = waitForObject({"type" => "javax.swing.JTable"});
    test::verify($jtable->getRowCount() == 0);
    my @data = (["Andy", "Beach", "andy.beach\@nowhere.com", "555 123 6786"],
                ["Candy", "Deane", "candy.deane\@nowhere.com", "555 234 8765"],
                ["Ed", "Fernleaf", "ed.fernleaf\@nowhere.com", "555 876 4654"]);
    foreach my $details (@data) {
        addNameAndAddress(@{$details});
    }
    test::compare($jtable->getRowCount(), scalar(@data));
    closeWithoutSaving();
}

require 'squish'
require 'names'

include Squish

def main
    startApplication("\"#{ENV['SQUISH_PREFIX']}/examples/java/addressbook/AddressBookSwing.jar\"")
    invokeMenuItem("File", "New...")
    jtable = waitForObject({:type => "javax.swing.JTable"})
    Test.verify(jtable.rowcount == 0)
    data = [["Andy", "Beach", "andy.beach@nowhere.com", "555 123 6786"],
            ["Candy", "Deane", "candy.deane@nowhere.com", "555 234 8765"],
            ["Ed", "Fernleaf", "ed.fernleaf@nowhere.com", "555 876 4654"]]
    data.each do |oneNameAndAddress|
        addNameAndAddress(oneNameAndAddress)
    end
    Test.compare(jtable.rowcount, data.length)
    closeWithoutSaving
end

source [findFile "scripts" "names.tcl"]

proc main {} {
    startApplication "\"$::env(SQUISH_PREFIX)/examples/java/addressbook/AddressBookSwing.jar\""
    invokeMenuItem "File" "New..."
    set jtable [waitForObject $names::Address_Book_Unnamed_JTable]
    test verify [expr {[property get $jtable rowcount] == 0}]
    set data [list \
        [list "Andy" "Beach" "andy.beach@nowhere.com" "555 123 6786"] \
        [list "Candy" "Deane" "candy.deane@nowhere.com" "555 234 8765"] \
        [list "Ed" "Fernleaf" "ed.fernleaf@nowhere.com" "555 876 4654"] ]
    for {set i 0} {$i < [llength $data]} {incr i} {
        addNameAndAddress [lindex $data $i]
    }
    test compare [property get $jtable rowcount] [llength $data]
    closeWithoutSaving
}

We begin by starting the application with a call to the startApplication() function. The string we pass can be an absolute path, or an AUT name registered with your squishserver. The AUT can be an executable, or a batch file, or a shell script. In Squish for Java, it can also be the name of a .jar or .class file.

We can call waitForObject() with a Real Name or a Symbolic Name to get a reference to the table view.

Once we have the table reference we can use it to access any of the Table's public methods and properties.

The invokeMenuItem() function is one we have created specially for this test. It takes a menu name and a menu item name and invokes the menu action. It uses Real Names to describe objects, and demonstrates how to parametrize values from variables in each script language.

After using the invokeMenuItem function to do File > New, we can verify that the table's row count is 0.

Next, we create some sample data and call a custom addNameAndAddress() to populate the table with the data using the AUT's Add dialog. Then we again compare the table's row count, this time to the number of rows in our sample data. And finally we call a custom closeWithoutSaving() to terminate the application.

We will now review each of the three supporting functions, so as to cover all the code in the tst_adding test case, starting with invokeMenuItem().

def invokeMenuItem(menu, item):
    mouseClick(waitForObjectItem({"type": "javax.swing.JMenuBar"}, menu))
    mouseClick(waitForObjectItem({"caption": menu, "type": "javax.swing.JMenu"}, item))

function invokeMenuItem(menu, item)
{
    activateItem(waitForObjectItem({"type": "javax.swing.JMenuBar"}, menu));
    activateItem(waitForObjectItem({"caption": menu, "type": "javax.swing.JMenu"}, item));
}

sub invokeMenuItem
{
    my($menu, $item) = @_;
    activateItem(waitForObjectItem({"type" => "javax.swing.JMenuBar"}, $menu));
    activateItem(waitForObjectItem({"caption" => $menu, "type" => "javax.swing.JMenu"}, $item));
}

def invokeMenuItem(menu, item)
    activateItem(waitForObjectItem({:type => "javax.swing.JMenuBar"}, menu))
    activateItem(waitForObjectItem({:caption => menu, :type => "javax.swing.JMenu"}, item))
end

proc invokeMenuItem {menu item} {
    invoke activateItem [waitForObjectItem [::Squish::ObjectName type javax.swing.JMenuBar visible true] $menu]
    invoke activateItem [waitForObjectItem [::Squish::ObjectName type javax.swing.JMenu visible true caption $menu] $item]
}

Instead of using a Symbolic Name that might be too specific, we can also create Real Name for the object, on the fly.

Real names must specify the type property. Here we've used the type to uniquely identify the MenuBar, and the type and caption properties to uniquely identify the Menu.

Once we have identified the object we want to interact with we use the waitForObjectItem() function to retrieve a reference to it and in this case we then apply the activateItem() function to it.

def addNameAndAddress(fields):
    invokeMenuItem("Edit", "Add...")
    type(waitForObject(names.address_Book_Add_Forename_JTextField), fields[0])
    type(waitForObject(names.address_Book_Add_Surname_JTextField), fields[1])
    type(waitForObject(names.address_Book_Add_Email_JTextField), fields[2])
    type(waitForObject(names.address_Book_Add_Phone_JTextField), fields[3])
    clickButton(waitForObject(names.address_Book_Add_OK_JButton))

function addNameAndAddress(fields)
{
    invokeMenuItem("Edit", "Add...");
    type(waitForObject(names.addressBookAddForenameJTextField), fields[0]);
    type(waitForObject(names.addressBookAddSurnameJTextField), fields[1]);
    type(waitForObject(names.addressBookAddEmailJTextField), fields[2]);
    type(waitForObject(names.addressBookAddPhoneJTextField), fields[3]);
    clickButton(waitForObject(names.addressBookAddOKJButton));
}

sub addNameAndAddress
{
    invokeMenuItem("Edit", "Add...");
    type(waitForObject($Names::address_book_add_forename_jtextfield), $_[0]);
    type(waitForObject($Names::address_book_add_surname_jtextfield), $_[1]);
    type(waitForObject($Names::address_book_add_email_jtextfield), $_[2]);
    type(waitForObject($Names::address_book_add_phone_jtextfield), $_[3]);
    clickButton(waitForObject($Names::address_book_add_ok_jbutton));
}

def addNameAndAddress(oneNameAndAddress)
    invokeMenuItem("Edit", "Add...")
    type(waitForObject(Names::Address_Book_Add_Forename_JTextField), oneNameAndAddress[0])
    type(waitForObject(Names::Address_Book_Add_Surname_JTextField), oneNameAndAddress[1])
    type(waitForObject(Names::Address_Book_Add_Email_JTextField), oneNameAndAddress[2])
    type(waitForObject(Names::Address_Book_Add_Phone_JTextField), oneNameAndAddress[3])
    clickButton(waitForObject(Names::Address_Book_Add_OK_JButton))
end

proc addNameAndAddress {fields} {
    invokeMenuItem "Edit" "Add..."

    invoke type [waitForObject $names::Address_Book_Add_Forename_JTextField] [lindex $fields 0]
    invoke type [waitForObject $names::Address_Book_Add_Surname_JTextField] [lindex $fields 1]
    invoke type [waitForObject $names::Address_Book_Add_Email_JTextField] [lindex $fields 2]
    invoke type [waitForObject $names::Address_Book_Add_Phone_JTextField] [lindex $fields 3]
    invoke clickButton [waitForObject $names::Address_Book_Add_OK_JButton]
}

For each set of name and address data:

• Invoke the Edit > Add menu option to pop up the Add dialog
• Populate each appropriate field by waiting for the relevant JTextField to be ready, and then type in the text using the type() function.
• At the end click the dialog's OK button.

The code from this function is very similar to what was in the tst_general test case.

def closeWithoutSaving():
    invokeMenuItem("File", "Quit")
    clickButton(waitForObject(names.address_Book_No_JButton))

function closeWithoutSaving()
{
    invokeMenuItem("File", "Quit");
    clickButton(waitForObject(names.addressBookNoJButton));
}

sub closeWithoutSaving
{
    invokeMenuItem("File", "Quit");
    clickButton(waitForObject($Names::address_book_no_jbutton));
}

def closeWithoutSaving
    invokeMenuItem("File", "Quit")
    clickButton(waitForObject(Names::Address_Book_No_JButton))
end

proc closeWithoutSaving {} {
    invokeMenuItem "File" "Quit"
    invoke clickButton [waitForObject $names::Address_Book_No_JButton]
}

Here we use the invokeMenuItem() function to do File > Quit, and then click the "save unsaved changes" dialog's No button.

Creating Data Driven Tests

In the previous section we had hard-coded names and addresses in our test. But what if we want to test lots of data? Or what if we want to change the data without having to change our test script's source code. One approach is to import a dataset into Squish and use the dataset as the source of the values we insert into our tests. Squish can import data in .tsv (tab-separated values format), .csv (comma-separated values format), .xls, or .xlsx (Microsoft Excel spreadsheet formats).

We want to add a test data file to our test suite. We can copy MyAddresses.tsv directly into the shared/testdata directory, or we can import it using the Squish IDE.

To import, we click File > Import Test Resource to pop-up the Import Squish Resource dialog. Inside the dialog, click the Browse button to choose the file to import (you can find this file already added to our example test suites). Make sure that the Import As combobox is set to "TestData".

By default the Squish IDE will import the test data just for the current test case, but we want the test data to be available to all the test suite's test cases: to do this check the Copy to Test Suite for Sharing radio button. Next, click the Finish button.

You should now see the file listed in the Test Suite Resources view (in the Test Data tab), and if you click the file's name it will be shown in an Editor view. The screenshot shows Squish IDE after some test data has been opened.

Adding a Test Case

Although in real life we would modify our tst_adding test case to use the test data, for the purpose of the tutorial we will make a new test case called tst_adding_data that is a copy of tst_adding and which we will modify to make use of the test data.

The only function we have to change is main, where instead of iterating over hard-coded items of data, we iterate over all the records in the dataset. We also need to update the expected row count at the end since we are adding a lot more records now, and we will also add a function to verify each record that's added.

import names
import os

def main():
    startApplication('"' + os.environ["SQUISH_PREFIX"] + '/examples/java/addressbook/AddressBookSwing.jar"')

    jtable = waitForObject({"type": "javax.swing.JTable"})
    invokeMenuItem("File", "New...")
    test.verify(jtable.getRowCount() == 0)
    limit = 10 # To avoid testing 100s of rows since that would be boring
    for row, record in enumerate(testData.dataset("MyAddresses.tsv")):
        forename = testData.field(record, "Forename")
        surname = testData.field(record, "Surname")
        email = testData.field(record, "Email")
        phone = testData.field(record, "Phone")
        addNameAndAddress((forename, surname, email, phone)) # pass as a single tuple
        checkNameAndAddress(jtable, record)
        if row > limit:
            break
    test.compare(jtable.getRowCount(), row + 1)
    closeWithoutSaving()

import * as names from 'names.js';

function main()
{
    startApplication('"' + OS.getenv("SQUISH_PREFIX") +
        '/examples/java/addressbook/AddressBookSwing.jar"');

    invokeMenuItem("File", "New...");
    var jtable = waitForObject({"type": "javax.swing.JTable"});
    test.verify(jtable.rowcount == 0);
    var limit = 10; // To avoid testing 100s of rows since that would be boring
    var records = testData.dataset("MyAddresses.tsv");
    var row = 0;
    for (; row < records.length; ++row) {
        var record = records[row];
        var forename = testData.field(record, "Forename");
        var surname = testData.field(record, "Surname");
        var email = testData.field(record, "Email");
        var phone = testData.field(record, "Phone");
        addNameAndAddress([forename, surname, email, phone]);
        checkNameAndAddress(jtable, record);
        if (row > limit)
            break;
    }
    test.compare(jtable.rowcount, row + 1);
    closeWithoutSaving();
}

require 'names.pl';

sub main
{
    startApplication("\"$ENV{'SQUISH_PREFIX'}/examples/java/addressbook/AddressBookSwing.jar\"");
    invokeMenuItem("File", "New...");
    my $jtable = waitForObject({"type" => "javax.swing.JTable"});
    test::verify($jtable->getRowCount() == 0);
    my $limit = 10; # To avoid testing 100s of rows since that would be boring
    my @records = testData::dataset("MyAddresses.tsv");
    my $row = 0;
    for (; $row < scalar(@records); $row++) {
        my $record = $records[$row];
        my $forename = testData::field($record, "Forename");
        my $surname = testData::field($record, "Surname");
        my $email = testData::field($record, "Email");
        my $phone = testData::field($record, "Phone");
        addNameAndAddress($forename, $surname, $email, $phone);
        checkNameAndAddress($jtable, $record);
        if ($row > $limit) {
            last;
        }
    }
    test::compare($jtable->getRowCount(), $row + 1);
    closeWithoutSaving();
}

require 'squish'
require 'names'

include Squish

def main
    startApplication("\"#{ENV['SQUISH_PREFIX']}/examples/java/addressbook/AddressBookSwing.jar\"")
    jtable = waitForObject({:type => "javax.swing.JTable"})
    invokeMenuItem("File", "New...")
    Test.verify(jtable.rowcount == 0)
    limit = 10 # To avoid testing 100s of rows since that would be boring
    rows = 0
    TestData.dataset("MyAddresses.tsv").each_with_index do
        |record, row|
        forename = TestData.field(record, "Forename")
        surname = TestData.field(record, "Surname")
        email = TestData.field(record, "Email")
        phone = TestData.field(record, "Phone")
        addNameAndAddress([forename, surname, email, phone]) # pass as a single Array
        checkNameAndAddress(jtable, record)
        break if row > limit
        rows += 1
    end
    Test.compare(jtable.rowcount, rows + 1)
    closeWithoutSaving
end

source [findFile "scripts" "names.tcl"]

proc main {} {
    startApplication "\"$::env(SQUISH_PREFIX)/examples/java/addressbook/AddressBookSwing.jar\""
    invokeMenuItem "File" "New..."
    set jtable [waitForObject [::Squish::ObjectName type javax.swing.JTable ]]
    test verify [expr {[property get $jtable rowcount] == 0}]
    # To avoid testing 100s of rows since that would be boring
    set limit 10
    set data [testData dataset "MyAddresses.tsv"]
    set columns [llength [testData fieldNames [lindex $data 0]]]
    set row 0
    for {} {$row < [llength $data]} {incr row} {
        set record [lindex $data $row]
        set forename [testData field $record "Forename"]
        set surname [testData field $record "Surname"]
        set email [testData field $record "Email"]
        set phone [testData field $record "Phone"]
        set fields [list $forename $surname $email $phone]
        addNameAndAddress $fields
        checkNameAndAddress $jtable $record
        if {$row > $limit} {
            break
        }
    }
    test compare [property get $jtable rowcount] [expr $row + 1]
    closeWithoutSaving
}

Squish provides access to test data through its testData module's functions—here we used the testData.dataset() function to access the data file and make its records available, and the testData.field() function to retrieve each record's individual fields.

Having used the test data to populate the JTable we want to be confident that the data in the table is the same as what we have added, so that's why we added the checkNameAndAddress() function. We also added a limit to how many records we would compare, just to make the test run faster.

def checkNameAndAddress(jtable, record):
    tableModel = jtable.getModel()
    for column in range(len(testData.fieldNames(record))):
        value = tableModel.getValueAt(0, column)
        test.compare(value, testData.field(record, column))

function checkNameAndAddress(jtable, record)
{
    var tableModel = jtable.getModel();
    for (var column = 0; column < testData.fieldNames(record).length; ++column) {
        var value = tableModel.getValueAt(0, column).toString();
        test.compare(value, testData.field(record, column));
    }
}

sub checkNameAndAddress
{
    my($jtable, $record) = @_;
    my $tableModel = $jtable->getModel();
    my @columnNames = testData::fieldNames($record);
    for (my $column = 0; $column < scalar(@columnNames); $column++) {
        my $value = $tableModel->getValueAt(0, $column);
        test::compare($value, testData::field($record, $column));
    }
}

def checkNameAndAddress(table, record)
    model = table.getModel()
    for column in 0...TestData.fieldNames(record).length
        value = model.getValueAt(0, column)
        Test.compare(value,  TestData.field(record, column))
    end
end

proc checkNameAndAddress {jtable record} {
    set tableModel [invoke $jtable getModel]
    set columns [llength [testData fieldNames $record]]
    for {set column 0} {$column < $columns} {incr column} {
        set value [invoke $tableModel getValueAt 0 $column]
        test compare $value [testData field $record $column]
    }
}

This function accesses the JTable's model, and extracts each cell's value using the Swing API. TMTOWTDI. We could use waitForObjectItem(table, "row/col") instead.

We then use test.compare() to check that the value in the cell is the same as the value in the test data we used.

This particular AUT always adds a new row before the current row, and always makes the added row the current row. The effect of this is that every new name and address is always added as the first row, and this is why we hard-coded the row# to be 0.

The screenshot below shows Squish's Test Summary log after the data-driven tests have been run.

Learning More

We have now completed the tutorial. Squish can do much more than we have shown here, but the aim has been to get you started with basic testing as quickly and easily as possible. The How to Create Test Scripts, and How to Test Applications - Specifics sections provide many more examples, including those that show how tests can interact with particular input elements, such as selects, select-ones, texts, and text-areas.

The API Reference and Tools Reference give full details of Squish's testing API and the numerous functions it offers to make testing as easy and efficient as possible. The time you invested will be repaid because you'll know what functionality Squish provides out of the box and can avoid reinventing things that are already available.

The key Java AWT/Swing examples with links to the places they are used are given below.

• The Payment Form example (How to Test Stateful and Single-Valued Widgets (—AWT/Swing)) shows how to test single-valued Java widgets such as: JButton, JCheckBox, JComboBox, JSpinner, and JTextField
• The Item Views example(How to Test JList, JTable, and JTree widgets (Java—AWT/Swing)) shows how to test Java's multi-item widgets, including: JList, JTable, and JTree, and also the models that hold their data.
• The CsvTable example (How to Test JTable and Use External Data Files (Java—AWT/Swing)) shows how to do data-driven testing using external data files.

In addition to the documented examples listed above, further Java AWT/Swing example applications and their corresponding tests are provided in <SQUISHDIR>/examples/java.

For more comprehensive examples that show how to test lists, tables, and trees, and also the most common widgets, including spinners, see How to Test Applications.
