PySide6.QtCanvasPainter.QCanvasBoxShadow¶

class QCanvasBoxShadow¶

QCanvasBoxShadow is a brush for painting rectangle shadows / glows.

Details

QCanvasBoxShadow is a rounded rectangle brush with blur applied. The performance of QCanvasBoxShadow is much better than a general shadow that creates blurred shadow/glow of any shaped item, as it uses SDF approach.

The features of QCanvasBoxShadow are similar to CSS box-shadow, with radius, spread, blur and color values. The rendering output also matches the CSS box-shadow, with few notable differences to make the QCanvasBoxShadow as high-performance as possible. Blurring is calculated mathematically in the shader rather than using Gaussian blur, which CSS box-shadow implementations often use. This makes the shadow look slightly different, especially when the blur amount grows bigger than half of the shadow width / height.

Here are screenshots to compare the rendering output of QCanvasBoxShadow and CSS box-shadow in the Chrome browser. These show how blur radius of 0, 10, 20 and 40 pixels affect smaller shadows.

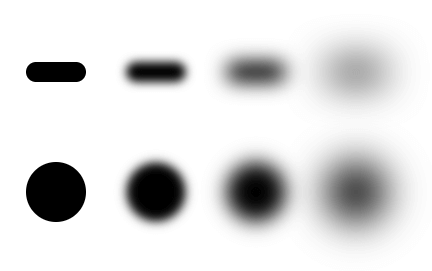

CSS box-shadow:

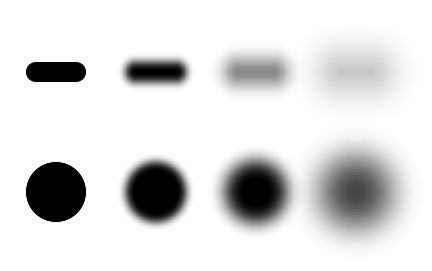

QCanvasBoxShadow :

Synopsis¶

Methods¶

def __init__()
def blur()
def bottomLeftRadius()
def bottomRightRadius()
def boundingRect()
def color()
def __ne__()
def __eq__()
def radius()
def rect()
def setBlur()
def setBottomLeftRadius()
def setBottomRightRadius()
def setColor()
def setRadius()
def setRect()
def setSpread()
def setTopLeftRadius()
def setTopRightRadius()
def spread()
def topLeftRadius()
def topRightRadius()

Note

This documentation may contain snippets that were automatically translated from C++ to Python. We always welcome contributions to the snippet translation. If you see an issue with the translation, you can also let us know by creating a ticket on https:/bugreports.qt.io/projects/PYSIDE

__init__()¶

Constructs a default box shadow. The box shadow position is (0, 0) and size (100, 100). Shadow corner radius is 0.0 and blur 0.0. Shadow color is Qt::black.

__init__(rect[, radius=0.0f[, blur=0.0f[, color=QColorConstants.Black]]])

Parameters:

rect – QRectF
radius – float
blur – float
color – QColor

Constructs a box shadow. The box shadow position and size are defined by rect. Shadow corner radius is radius and blur blur. Shadow color is color.

__init__(x, y, width, height[, radius=0.0f[, blur=0.0f[, color=QColorConstants.Black]]])

Parameters:

x – float
y – float
width – float
height – float
radius – float
blur – float
color – QColor

Constructs a box shadow. The box shadow position is x, y and size width, height. Shadow corner radius is radius and blur blur. Shadow color is color.

blur()¶

Return type:: float

Returns the blur of shadow box.

See also

setBlur()

bottomLeftRadius()¶

Return type:: float

Returns the bottom-left radius of shadow box. When this is -1, painting of the shadow will use the value of radius() for this corner. The default value is -1.

See also

setBottomLeftRadius()

bottomRightRadius()¶

Return type:: float

Returns the bottom-right radius of shadow box. When this is -1, painting of the shadow will use the value of radius() for this corner. The default value is -1.

See also

setBottomRightRadius()

boundingRect()¶

Return type:: QRectF

Returns the area covered by the shadow. This takes into account the shadow rect() , blur() and spread() . If you don’t want to use drawBoxShadow() helper method, this can be used to for e.g. adding correctly sized rect() into the path.

See also

setRect() setBlur() setSpread()

color()¶

Return type:: QColor

Returns the color of shadow box.

See also

setColor()

__ne__(rhs)¶

Parameters:: rhs – QCanvasBoxShadow
Return type:: bool

__eq__(rhs)¶

Parameters:: rhs – QCanvasBoxShadow
Return type:: bool

radius()¶

Return type:: float

Returns the radius of shadow box.

See also

setRadius()

rect()¶

Return type:: QRectF

Returns the rect area of shadow box.

See also

setRect()

setBlur(blur)¶

Parameters:: blur – float

Sets the shadow blur to blur in pixels. The default value is 0.0 meaning no blur.

See also

blur()

setBottomLeftRadius(radius)¶

Parameters:: radius – float

Sets the bottom-left corner radius to radius. The default value is -1 which means that individual radius has not been set for this corner, and common radius() is used instead.

See also

bottomLeftRadius()

setBottomRightRadius(radius)¶

Parameters:: radius – float

Sets the bottom-right corner radius to radius. The default value is -1 which means that individual radius has not been set for this corner, and common radius() is used instead.

See also

bottomRightRadius()

setColor(color)¶

Parameters:: color – QColor

Sets the shadow color to color. The default value is black with full opacity.

See also

color()

setRadius(radius)¶

Parameters:: radius – float

Sets the shadow corner radius to radius in pixels. The default value is 0.0 meaning no radius.

See also

radius()

setRect(rect)¶

Parameters:: rect – QRectF

Sets the rect area of shadow box to rect.

setRect(x, y, width, height)

Parameters:

x – float
y – float
width – float
height – float

Sets the rect area of shadow box to (x, y, width, height).

See also

rect()

setSpread(spread)¶

Parameters:: spread – float

Sets the shadow spread to spread in pixels. The default value is 0.0 meaning no spread.

See also

spread()

setTopLeftRadius(radius)¶

Parameters:: radius – float

Sets the top-left corner radius to radius. The default value is -1 which means that individual radius has not been set for this corner, and common radius() is used instead.

See also

topLeftRadius()

setTopRightRadius(radius)¶

Parameters:: radius – float

Sets the top-right corner radius to radius. The default value is -1 which means that individual radius has not been set for this corner, and common radius() is used instead.

See also

topRightRadius()

spread()¶

Return type:: float

Returns the spread of shadow box.

See also

setSpread()

topLeftRadius()¶

Return type:: float

Returns the top-left radius of shadow box. When this is -1, painting of the shadow will use the value of radius() for this corner. The default value is -1.

See also

setTopLeftRadius()

topRightRadius()¶

Return type:: float

Returns the top-right radius of shadow box. When this is -1, painting of the shadow will use the value of radius() for this corner. The default value is -1.

See also

setTopRightRadius()
