PySide6.QtCanvasPainter.QCanvasBoxGradient¶

class QCanvasBoxGradient¶

QCanvasBoxGradient is a brush for box gradient painting.

Details

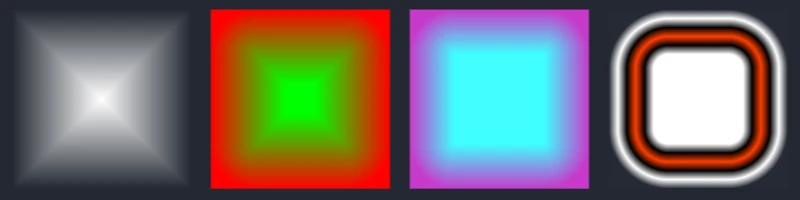

Box gradient interpolate colors between start and end points, creating a rounded rectangle shaped gradient. With the setRadius() and setFeather() the roundness and softness of the gradient can be controlled.

Here is a simple example:

qcboxgradient-example1

QRectF rect(20, 20, 160, 160);
QCanvasBoxGradient bg(rect, 20, 50);
bg.setColorAt(0.0, "#1a2a6c");
bg.setColorAt(0.2, "#fdbb2d");
bg.setColorAt(1.0, QColorConstants::Transparent);
p->setFillStyle(bg);
p->fillRect(rect);

Note

When QCanvasBoxGradient is used to paint round rectangle, it is usually better to use rect() than roundRect() as the rounding comes from the brush rather than the path. This avoids creating extra vertices and thus performs better.

Synopsis¶

Methods¶

def __init__()
def feather()
def radius()
def rect()
def setFeather()
def setRadius()
def setRect()

Note

This documentation may contain snippets that were automatically translated from C++ to Python. We always welcome contributions to the snippet translation. If you see an issue with the translation, you can also let us know by creating a ticket on https:/bugreports.qt.io/projects/PYSIDE

__init__()¶

Constructs a default box gradient. Position of gradient is (0, 0) and size (100, 100) Gradient feather is 10.0. Gradient radius is 0.0. Gradient start color is white (255, 255, 255) and end color transparent black (0, 0, 0, 0).

__init__(rect, feather[, radius=0.0f])

Parameters:

rect – QRectF
feather – float
radius – float

Constructs a box gradient. Position and size of gradient is rect. Gradient feather is feather. Gradient radius is radius. Gradient start color is white (255, 255, 255) and end color transparent black (0, 0, 0, 0).

__init__(x, y, width, height, feather[, radius=0.0f])

Parameters:

x – float
y – float
width – float
height – float
feather – float
radius – float

Constructs a box gradient. Position of gradient is ( x, y) and size ( width, height) Gradient feather is feather. Gradient radius is radius. Gradient start color is white (255, 255, 255) and end color transparent black (0, 0, 0, 0).

feather()¶

Return type:: float

Returns the feather of the box gradient.

See also

setFeather()

radius()¶

Return type:: float

Returns the radius of the box gradient.

See also

setRadius()

rect()¶

Return type:: QRectF

Returns the rectangle area of the box gradient.

See also

setRect()

setFeather(feather)¶

Parameters:: feather – float

Sets the feather of box gradient to feather.

See also

feather()

setRadius(radius)¶

Parameters:: radius – float

Sets the radius of box gradient to radius. The maximum radius is half of width or height of rect() , depending on which one is smaller.

See also

radius()

setRect(rect)¶

Parameters:: rect – QRectF

Sets the rectangle of box gradient to rect.

setRect(x, y, width, height)

Parameters:

x – float
y – float
width – float
height – float

Sets the rectangle of box gradient to position ( x, y) and size ( width, height).

See also

rect()
