Detailed Description

A guide to producing printed output with Qt’s paint system and widgets.

The Qt Print Support module provides extensive cross-platform support for printing. Using the printing systems on each platform, Qt applications can print to attached printers and across networks to remote printers. The printing system also supports PDF file generation, providing the foundation for basic report generation facilities.

Qt Print Support is not available on:

• Android

• iOS

Classes Supporting Printing

The following classes support the selecting and setting up of printers and printing output.

QAbstractPrintDialog	The QAbstractPrintDialog class provides a base implementation for print dialogs used to configure printers.
QPrintDialog	The QPrintDialog class provides a dialog for specifying the printer’s configuration.
QPageSetupDialog	The QPageSetupDialog class provides a configuration dialog for the page-related options on a printer.
QPrintPreviewDialog	The QPrintPreviewDialog class provides a dialog for previewing and configuring page layouts for printer output.
QPrinter	The QPrinter class is a paint device that paints on a printer.
QPrintEngine	The QPrintEngine class defines an interface for how QPrinter interacts with a given printing subsystem.
QPrinterInfo	The QPrinterInfo class gives access to information about existing printers.
QPrintPreviewWidget	The QPrintPreviewWidget class provides a widget for previewing page layouts for printer output.

Paint Devices and Printing

Printers are represented by QPrinter, a paint device that provides functionality specific to printing, such as support for multiple pages and double-sided output. As a result, printing involves using a QPainter to paint onto a series of pages in the same way that you would paint onto a custom widget or image.

Creating a QPrinter

Although QPrinter objects can be constructed and set up without requiring user input, printing is often performed as a result of a request by the user; for example, when the user selects the File|Print… menu item in a GUI application. In such cases, a newly-constructed QPrinter object is supplied to a QPrintDialog , allowing the user to specify the printer to use, paper size, and other printing properties.

printer = QPrinter()
dialog = QPrintDialog(printer, self)
dialog.setWindowTitle("Print Document")
if editor.textCursor().hasSelection():
    dialog.addEnabledOption(QAbstractPrintDialog.PrintDialogOption.PrintSelection)
if dialog.exec() != QDialog.DialogCode.Accepted:
    return

It is also possible to set certain default properties by modifying the QPrinter before it is supplied to the print dialog. For example, applications that generate batches of reports for printing may set up the QPrinter to write to a local file by default rather than to a printer.

Painting onto a Page

Once a QPrinter object has been constructed and set up, a QPainter can be used to perform painting operations on it. We can construct and set up a painter in the following way:

printer = QPrinter(QPrinter.PrinterMode.HighResolution)
printer.setOutputFileName("print.ps")
painter.begin(printer)
for page in range(0, numberOfPages):
    # Use the painter to draw on the page.
    if page != lastPage:
        printer.newPage()
painter.end()

Since the QPrinter starts with a blank page, we only need to call the newPage() function after drawing each page, except for the last page.

The document is sent to the printer, or written to a local file, when we call end().

Coordinate Systems

QPrinter provides functions that can be used to obtain information about the dimensions of the paper (the paper rectangle) and the dimensions of the printable area (the page rectangle). These are given in logical device coordinates that may differ from the physical coordinates used by the device itself, indicating that the printer is able to render text and graphics at a (typically higher) resolution than the user’s display.

Although we do not need to handle the conversion between logical and physical coordinates ourselves, we still need to apply transformations to painting operations because the pixel measurements used to draw on screen are often too small for the higher resolutions of typical printers.

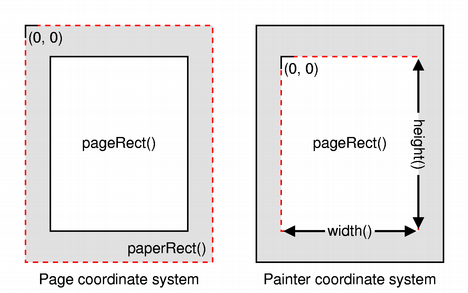

The paperRect() and pageRect() functions provide information about the size of the paper used for printing and the area on it that can be painted on.

The rectangle returned by pageRect() usually lies inside the rectangle returned by paperRect() . You do not need to take the positions and sizes of these area into account when using a QPainter with a QPrinter as the underlying paint device; the origin of the painter’s coordinate system will coincide with the top-left corner of the page rectangle, and painting operations will be clipped to the bounds of the drawable part of the page.

The paint system automatically uses the correct device metrics when painting text but, if you need to position text using information obtained from font metrics, you need to ensure that the print device is specified when you construct QFontMetrics and QFontMetricsF objects, or ensure that each QFont used is constructed using the form of the constructor that accepts a QPaintDevice argument.

Printing Widgets

To print a widget, you can use the render() function. As mentioned, the printer’s resolution is usually higher than the screen resolution, so you will have to scale the painter. You may also want to position the widget on the page. The following code sample shows how this may look.

painter = QPainter()
painter.begin(printer)
pageLayout = printer.pageLayout()
pageRect = pageLayout.paintRectPixels(printer.resolution())
paperRect = pageLayout.fullRectPixels(printer.resolution())
xscale = pageRect.width() / double(myWidget.width())
yscale = pageRect.height() / double(myWidget.height())
scale = min(xscale, yscale)
painter.translate(pageRect.x() + paperRect.width() / 2,
                  pageRect.y() + paperRect.height() / 2)
painter.scale(scale, scale)
painter.translate(-myWidget.width() / 2, -myWidget.height() / 2)
myWidget.render(painter)

This will center the widget on the page and scale it so that it fits the page.

Printing from Complex Widgets

Certain widgets, such as QTextEdit and QGraphicsView, display rich content that is typically managed by instances of other classes, such as QTextDocument and QGraphicsScene. As a result, it is these content handling classes that usually provide printing functionality, either via a function that can be used to perform the complete task, or via a function that accepts an existing QPainter object. Some widgets provide convenience functions to expose underlying printing features, avoiding the need to obtain the content handler just to call a single function.

The following table shows which class and function are responsible for printing from a selection of different widgets. For widgets that do not expose printing functionality directly, the content handling classes containing this functionality can be obtained via a function in the corresponding widget’s API.

Widget	Printing function |Accepts
QGraphicsView	QGraphicsView.render()	QPainter
QSvgWidget	QSvgRenderer.render()	QPainter
QTextEdit	QTextDocument.print()	QPrinter
QTextLayout	QTextLayout.draw()	QPainter
QTextLine	QTextLine.draw()	QPainter

QTextEdit requires a QPrinter rather than a QPainter because it uses information about the configured page dimensions in order to insert page breaks at the most appropriate places in printed documents.

Using the Module

To include the definitions of modules classes, use the following directive:

import PySide6.QtPrintSupport

List of Classes

A	QAbstractPrintDialog
P	QPageSetupDialog	QPrintDialog	QPrintEngine
	QPrintPreviewDialog	QPrintPreviewWidget	QPrinter
	QPrinterInfo
